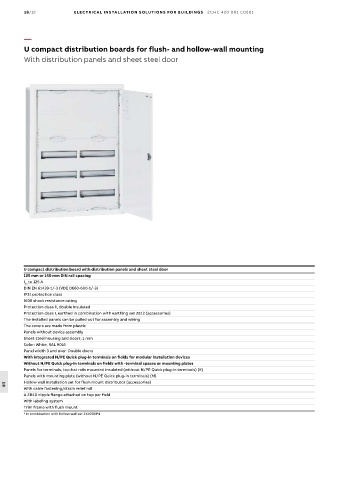

18/12 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
U compact distribution boards for flush- and hollow-wall mounting
With distribution panels and sheet steel door

U compact distribution board with distribution panels and sheet steel door
125 mm or 150 mm DIN rail spacing
I to 125 A
nA
DIN EN 61439-1/-3 (VDE 0660-600-1/-3)
IP31 protection class
IK08 shock resistance rating
Protection class II, double insulated
Protection class I, earthed in combination with earthing set ZE12 (accessories)
The installed panels can be pulled out for assembly and wiring
The covers are made from plastic
Panels without device assembly
Sheet steel housing and doors, 1 mm
Color: White, RAL 9016
Panel width 3 and over: Double doors
With integrated N/PE Quick plug-in terminals on fields for modular installation devices
Without N/PE Quick plug-in terminals on fields with -terminal spaces or mounting plates
Panels for terminals, top-hat rails mounted insulated (without N/PE Quick plug-in terminals) (K)
Panels with mounting plate (without N/PE Quick plug-in terminals) (M)
Hollow wall installation set for flush mount distributor (accessories)
With cable fastening/strain relief rail
18
A ZB40 nipple flange attached on top per field
With labeling system
Trim frame with flush mount
* In combination with hollow wall set ZKV200P4
