18/13

—

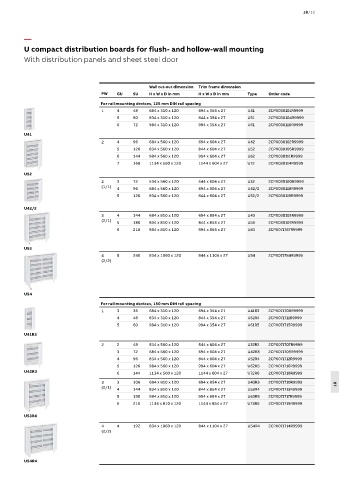

U compact distribution boards for flush- and hollow-wall mounting
With distribution panels and sheet steel door

Wall cut-out dimension Trim frame dimension
PW GU SU H x W x D in mm H x W x D in mm Type Order code
For rail mounting devices, 125 mm DIN rail spacing
1 4 48 684 x 310 x 120 694 x 354 x 27 U41 2CPX030101R9999
5 60 834 x 310 x 120 844 x 354 x 27 U51 2CPX030104R9999
6 72 984 x 310 x 120 994 x 354 x 27 U61 2CPX030110R9999
U41
2 4 96 684 x 560 x 120 694 x 604 x 27 U42 2CPX030102R9999
5 120 834 x 560 x 120 844 x 604 x 27 U52 2CPX030105R9999
6 144 984 x 560 x 120 994 x 604 x 27 U62 2CPX030111R9999
7 168 1134 x 560 x 120 1144 x 604 x 27 U72 2CPX030114R9999

U52
2 3 72 534 x 560 x 120 544 x 604 x 27 U32 2CPX030100R9999
(1/1) 4 96 684 x 560 x 120 694 x 604 x 27 U42/2 2CPX030118R9999
5 120 834 x 560 x 120 844 x 604 x 27 U52/2 2CPX030119R9999

U42/2
3 4 144 684 x 810 x 120 694 x 854 x 27 U43 2CPX030103R9999
(2/1) 5 180 834 x 810 x 120 844 x 854 x 27 U53 2CPX030107R9999
6 216 984 x 810 x 120 994 x 854 x 27 U63 2CPX071787R9999

U53
4 5 240 834 x 1060 x 120 844 x 1104 x 27 U54 2CPX071784R9999
(2/2)

U54
For rail mounting devices, 150 mm DIN rail spacing
1 3 36 684 x 310 x 120 694 x 354 x 27 U41R3 2CPX071708R9999
4 48 834 x 310 x 120 844 x 354 x 27 U51R4 2CPX071711R9999
5 60 984 x 310 x 120 994 x 354 x 27 U61R5 2CPX071715R9999
U41R3
2 2 48 534 x 560 x 120 544 x 604 x 27 U32R2 2CPX071707R9999
3 72 684 x 560 x 120 694 x 604 x 27 U42R3 2CPX071709R9999
4 96 834 x 560 x 120 844 x 604 x 27 U52R4 2CPX071712R9999
5 120 984 x 560 x 120 994 x 604 x 27 U62R5 2CPX071716R9999
U42R3 6 144 1134 x 560 x 120 1144 x 604 x 27 U72R6 2CPX071718R9999
3 3 108 684 x 810 x 120 694 x 854 x 27 U43R3 2CPX071710R9999 18
(2/1) 4 144 834 x 810 x 120 844 x 854 x 27 U53R4 2CPX071713R9999
5 180 984 x 810 x 120 994 x 854 x 27 U63R5 2CPX071717R9999
6 216 1134 x 810 x 120 1144 x 854 x 27 U73R6 2CPX071719R9999

U53R4
4 4 192 834 x 1060 x 120 844 x 1104 x 27 U54R4 2CPX071714R9999
(2/2)

U54R4
