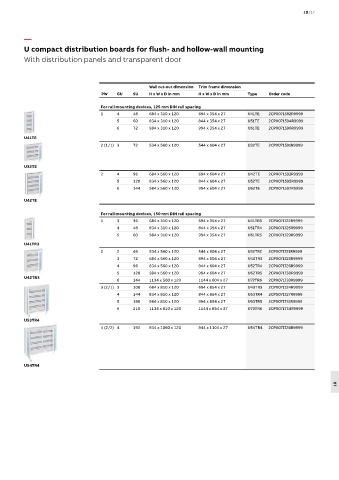

U compact distribution boards for flush- and hollow-wall mounting
With distribution panels and transparent door

Wall cut-out dimension Trim frame dimension
PW GU SU H x W x D in mm H x W x D in mm Type Order code

For rail mounting devices, 125 mm DIN rail spacing
1 4 48 684 x 310 x 120 694 x 354 x 27 U41TE 2CPX071592R9999
5 60 834 x 310 x 120 844 x 354 x 27 U51TE 2CPX071594R9999
6 72 984 x 310 x 120 994 x 354 x 27 U61TE 2CPX071596R9999
U41TE
2 (1/1) 3 72 534 x 560 x 120 544 x 604 x 27 U32TE 2CPX071591R9999

U32TE
2 4 96 684 x 560 x 120 694 x 604 x 27 U42TE 2CPX071593R9999
5 120 834 x 560 x 120 844 x 604 x 27 U52TE 2CPX071595R9999
6 144 984 x 560 x 120 994 x 604 x 27 U62TE 2CPX071597R9999
U42TE

For rail mounting devices, 150 mm DIN rail spacing
1 3 36 684 x 310 x 120 694 x 354 x 27 U41TR3 2CPX071722R9999
4 48 834 x 310 x 120 844 x 354 x 27 U51TR4 2CPX071725R9999
5 60 984 x 310 x 120 994 x 354 x 27 U61TR5 2CPX071729R9999
U41TR3
2 2 48 534 x 560 x 120 544 x 604 x 27 U32TR2 2CPX071721R9999
3 72 684 x 560 x 120 694 x 604 x 27 U42TR3 2CPX071723R9999
4 96 834 x 560 x 120 844 x 604 x 27 U52TR4 2CPX071726R9999
5 120 984 x 560 x 120 994 x 604 x 27 U62TR5 2CPX071730R9999
U42TR3
6 144 1134 x 560 x 120 1144 x 604 x 27 U72TR6 2CPX071733R9999
3 (2/1) 3 108 684 x 810 x 120 694 x 854 x 27 U43TR3 2CPX071724R9999
4 144 834 x 810 x 120 844 x 854 x 27 U53TR4 2CPX071727R9999
5 180 984 x 810 x 120 994 x 854 x 27 U63TR5 2CPX071731R9999
6 216 1134 x 810 x 120 1144 x 854 x 27 U73TR6 2CPX071734R9999

U53TR4
4 (2/2) 4 192 834 x 1060 x 120 844 x 1104 x 27 U54TR4 2CPX071728R9999

U54TR4
