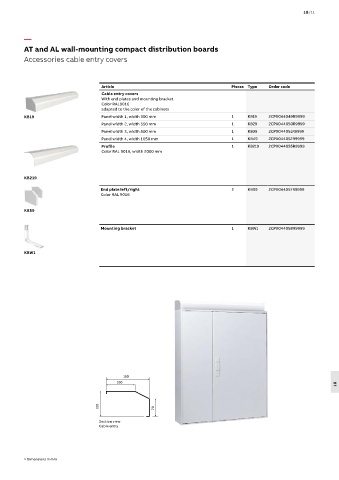

AT and AL wall-mounting compact distribution boards
Accessories cable entry covers

Article Pieces Type Order code
Cable entry covers
With end plates and mounting bracket
Color RAL9016
adapted to the color of the cabinets
KB19 Panel width 1, width 300 mm 1 KB19 2CPX044049R9999
Panel width 2, width 550 mm 1 KB29 2CPX044050R9999
Panel width 3, width 800 mm 1 KB39 2CPX044051R9999
Panel width 4, width 1050 mm 1 KB49 2CPX044052R9999
Profile 1 KB219 2CPX044055R9999
Color RAL 9016, width 2000 mm

KB219
End plate left/right 2 KBS9 2CPX044057R9999
Color RAL 9016

KBS9

Mounting bracket 1 KBW1 2CPX044058R9999

KBW1

150
100
18

110 70

Section view
Cable entry

> Dimensions in mm
