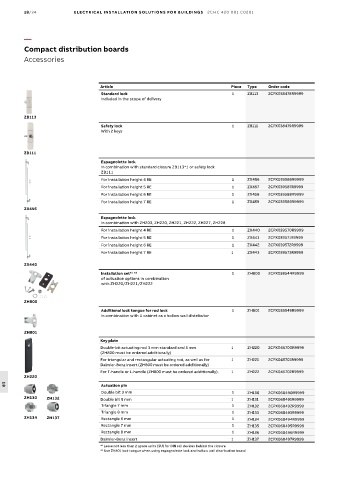

18/34 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Compact distribution boards
Accessories

Article Piece Type Order code
Standard lock 1 ZB113 2CPX038478R9999
Included in the scope of delivery

ZB113
Safety lock 1 ZB111 2CPX038479R9999
With 2 keys

ZB111
Espagnolette lock
In combination with standard closure ZB113*1 or safety lock
ZB111
For installation height 4 RE 1 ZX456 2CPX039586R9999
For installation height 5 RE 1 ZX457 2CPX039587R9999
For installation height 6 RE 1 ZX458 2CPX039588R9999
For installation height 7 RE 1 ZX459 2CPX039589R9999
ZX456
Espagnolette lock
In combination with ZH203, ZH220, ZH221, ZH222, ZH227, ZH228
For installation height 4 RE 1 ZX440 2CPX039570R9999
For installation height 5 RE 1 ZX441 2CPX039571R9999
For installation height 6 RE 1 ZX442 2CPX039572R9999
For installation height 7 RE 1 ZX443 2CPX039573R9999
ZX440
Installation set* * 2 1 ZH800 2CPX038544R9999
1
of actuation options in combination
with ZH220/ZH221/ZH222

ZH800
Additional lock tongue for rod lock 1 ZH801 2CPX038549R9999
In combination with U cabinet as a hollow wall distributor

ZH801
Key plate
Double-bit actuating rod 3 mm standard and 5 mm 1 ZH220 2CPX045700R9999
(ZH800 must be ordered additionally)
For triangular and rectangular actuating rod, as well as for 1 ZH221 2CPX045701R9999
Daimler-Benz insert (ZH800 must be ordered additionally)
For T-handle or L-handle (ZH800 must be ordered additionally). 1 ZH222 2CPX045702R9999
ZH220
Actuation pin
18
Double bit 3 mm 1 ZH130 2CPX060490R9999
ZH130 ZH132 Double bit 5 mm 1 ZH131 2CPX060491R9999
Triangle 7 mm 1 ZH132 2CPX060492R9999

Triangle 8 mm 1 ZH133 2CPX060493R9999
ZH134 ZH137 Rectangle 6 mm 1 ZH134 2CPX060494R9999
Rectangle 7 mm 1 ZH135 2CPX060495R9999
Rectangle 8 mm 1 ZH136 2CPX060496R9999
Daimler-Benz insert 1 ZH137 2CPX060497R9999
* 1 Leave not less than 2 space units (SU) for DIN rail devices behind the closure
* 2 Use ZH801 lock tongue when using espagnolette lock and hollow wall distribution board
