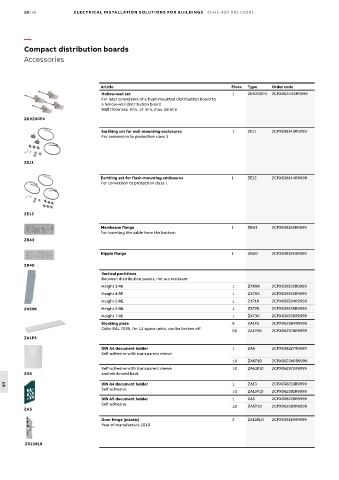

18/36 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Compact distribution boards
Accessories

Article Piece Type Order code
Hollow-wall set 1 ZKV200P4 2CPX062446R9999
For later conversion of a flush-mounted distribution board to
a hollow-wall distribution board
Wall thickness min. 14 mm, max. 58 mm

ZKV200P4
Earthing set for wall-mounting enclosures 1 ZE11 2CPX038143R9999
For conversion to protection class 1

ZE11

Earthing set for flush-mounting enclosures 1 ZE12 2CPX038144R9999
For conversion to protection class 1

ZE12

Membrane flange 1 ZB43 2CPX038183R9999
For inserting the cable from the bottom
ZB43

Nipple flange 1 ZB40 2CPX038195R9999

ZB40
Vertical partitions
Between distribution panels, not arc-resistant
Height 3 RE 1 ZX69K 2CPX039332R9999
Height 4 RE 1 ZX70K 2CPX039333R9999
Height 5 RE 1 ZX71K 2CPX039334R9999
ZX69K Height 6 RE 1 ZX72K 2CPX039335R9999
Height 7 RE 1 ZX73K 2CPX039336R9999
Blocking plate 5 ZA1P5 2CPX062384R9999
Color RAL 7035, for 12 space units, can be broken off
50 ZA1P50 2CPX062378R9999
ZA1P5
DIN A4 document holder 1 ZA6 2CPX038227R9999
Self-adhesive with transparent sleeve
10 ZA6P10 2CPX062380R9999
Self-adhesive with transparent sleeve 10 ZA61P10 2CPX062375R9999
ZA6 and reinforced back

DIN A4 document holder 1 ZA13 2CPX038233R9999
Self-adhesive
18
10 ZA13P10 2CPX062381R9999
DIN A5 document holder 1 ZA5 2CPX038228R9999
Self-adhesive 10 ZA5P10 2CPX062382R9999
ZA5
Door hinge (plastic) 2 ZX139LR 2CPX039139R9999
Year of manufacture 2010

ZX139LR
