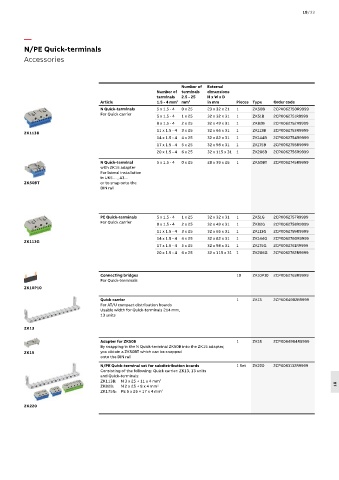

N/PE Quick-terminals
Accessories

Number of External
Number of terminals dimensions
terminals 2.5 - 25 H x W x D
Article 1.5 - 4 mm 2 mm 2 in mm Pieces Type Order code
N Quick-terminals 5 x 1.5 - 4 0 x 25 23 x 32 x 21 1 ZK50B 2CPX062750R9999
For Quick carrier
5 x 1.5 - 4 1 x 25 32 x 32 x 31 1 ZK51B 2CPX062751R9999
8 x 1.5 - 4 2 x 25 32 x 49 x 31 1 ZK82B 2CPX062752R9999
11 x 1.5 - 4 3 x 25 32 x 65 x 31 1 ZK113B 2CPX062753R9999
ZK113B
14 x 1.5 - 4 4 x 25 32 x 82 x 31 1 ZK144B 2CPX062754R9999
17 x 1.5 - 4 5 x 25 32 x 98 x 31 1 ZK175B 2CPX062755R9999
20 x 1.5 - 4 6 x 25 32 x 115 x 31 1 ZK206B 2CPX062756R9999
N Quick-terminal 5 x 1.5 - 4 0 x 25 28 x 39 x 25 1 ZK50BT 2CPX062745R9999
with ZK15 adapter
For lateral installation
in UK5… , A3…
ZK50BT or to snap onto the
DIN rail

PE Quick-terminals 5 x 1.5 - 4 1 x 25 32 x 32 x 31 1 ZK51G 2CPX062757R9999
For Quick carrier 8 x 1.5 - 4 2 x 25 32 x 49 x 31 1 ZK82G 2CPX062758R9999
11 x 1.5 - 4 3 x 25 32 x 65 x 31 1 ZK113G 2CPX062759R9999
14 x 1.5 - 4 4 x 25 32 x 82 x 31 1 ZK144G 2CPX062760R9999
ZK113G
17 x 1.5 - 4 5 x 25 32 x 98 x 31 1 ZK175G 2CPX062761R9999
20 x 1.5 - 4 6 x 25 32 x 115 x 31 1 ZK206G 2CPX062762R9999

Connecting bridges 10 ZK10P10 2CPX062763R9999
For Quick-terminals
ZK10P10

Quick carrier 1 ZK13 2CPX064982R9999
For AT/U compact distribution boards
Usable width for Quick-terminals 214 mm,
13 units

ZK13

Adapter for ZK50B 1 ZK15 2CPX064984R9999
By snapping in the N Quick-terminal ZK50B into the ZK15 adapter,
ZK15 you obtain a ZK50BT which can be snapped
onto the DIN rail
N/PE Quick-terminal set for subdistribution boards 1 Set ZK220 2CPX063132R9999
Consisting of the following: Quick carrier: ZK13, 13 units
and Quick-terminals:
ZK113B: N 3 x 25 + 11 x 4 mm 2
ZK82B: N 2 x 25 + 8 x 4 mm 2 18
ZK175G: PE 5 x 25 + 17 x 4 mm 2

ZK220
