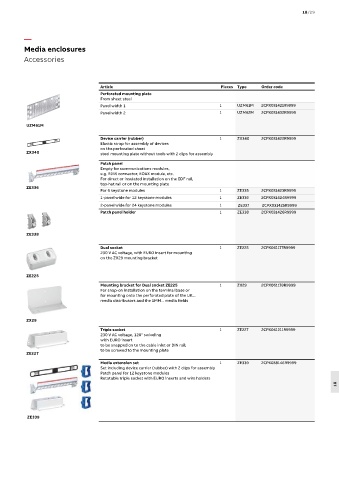

18/29

—
Media enclosures
Accessories

Article Pieces Type Order code
Perforated mounting plate
From sheet steel
Panel width 1 1 UZM61M 2CPX031421R9999
Panel width 2 1 UZM62M 2CPX031432R9999

UZM61M

Device carrier (rubber) 1 ZX340 2CPX031422R9999
Elastic strap for assembly of devices
on the perforated sheet
ZX340 steel mounting plate without tools with 2 clips for assembly
Patch panel
Empty for communications modules,
e.g. RJ45 connector, KOAX module, etc.
For direct or insulated installation on the EDF rail,
top-hat rail or on the mounting plate
ZE336
For 6 keystone modules 1 ZE335 2CPX031423R9999
1-panel wide for 12 keystone modules 1 ZE336 2CPX031424R9999
2-panel wide for 24 keystone modules 1 ZE337 2CPX031425R9999
Patch panel holder 1 ZE338 2CPX031426R9999

ZE338

Dual socket 1 ZE225 2CPX061177R9999
230 V AC voltage, with EURO insert for mounting
on the ZX29 mounting bracket

ZE225
Mounting bracket for Dual socket ZE225 1 ZX29 2CPX061178R9999
For snap-on installation on the terminal base or
for mounting onto the perforated plate of the UK...
media distributors and the 1MM... media fields

ZX29
Triple socket 1 ZE227 2CPX061211R9999
230 V AC voltage, 120° swiveling
with EURO insert
to be snapped on to the cable inlet or DIN rail;
to be screwed to the mounting plate
ZE227
Media extension set 1 ZE339 2CPX038146R9999
Set including device carrier (rubber) with 2 clips for assembly
Patch panel for 12 keystone modules
Rotatable triple socket with EURO inserts and wire holders
18

ZE339
