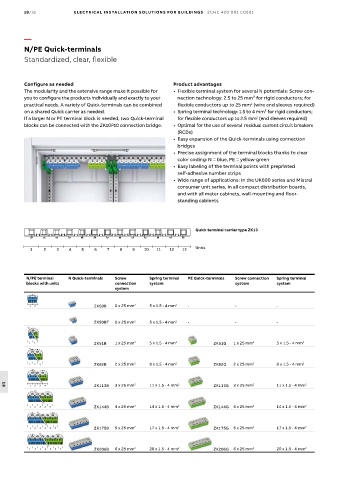

18/32 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
N/PE Quick-terminals
Standardized, clear, flexible

Configure as needed Product advantages
The modularity and the extensive range make it possible for • Flexible terminal system for several N potentials: Screw con-
you to configure the products individually and exactly to your nection technology: 2.5 to 25 mm² for rigid conductors; for
practical needs. A variety of Quick-terminals can be combined flexible conductors up to 25 mm (wire end sleeves required)
2
on a shared Quick carrier as needed. • Spring terminal technology: 1.5 to 4 mm² for rigid conductors;
2
If a larger N or PE terminal block is needed, two Quick-terminal for flexible conductors up to 2.5 mm (end sleeves required)
blocks can be connected with the ZK10P10 connection bridge. • Optimal for the use of several residual current circuit breakers
(RCDs)
• Easy expansion of the Quick-terminals using connection
bridges
• Precise assignment of the terminal blocks thanks to clear
color coding: N = blue, PE = yellow-green
• Easy labeling of the terminal points with preprinted
self-adhesive number strips
• Wide range of applications: In the UK600 series and Mistral
consumer unit series, in all compact distribution boards,
and with all meter cabinets, wall-mounting and floor-
standing cabinets

Quick terminal carrier type ZK13

1 2 3 4 5 6 7 8 9 10 11 12 13 Units

N/PE terminal N Quick-terminals Screw Spring terminal PE Quick-terminals Screw connection Spring terminal
blocks with units connection system system system
system

1 2 ZK50B 0 x 25 mm 2 5 x 1.5 - 4 mm 2 - - -

ZK50BT 0 x 25 mm 2 5 x 1.5 - 4 mm 2 - - -

1 2 ZK51B 1 x 25 mm 2 5 x 1.5 - 4 mm 2 ZK51G 1 x 25 mm 2 5 x 1.5 - 4 mm 2

1 2 3 ZK82B 2 x 25 mm 2 8 x 1.5 - 4 mm 2 ZK82G 2 x 25 mm 2 8 x 1.5 - 4 mm 2

1 2 3 4 ZK113B 3 x 25 mm 2 11 x 1.5 - 4 mm 2 ZK113G 3 x 25 mm 2 11 x 1.5 - 4 mm 2
18

1 2 3 4 5 ZK144B 4 x 25 mm 2 14 x 1.5 - 4 mm 2 ZK144G 4 x 25 mm 2 14 x 1.5 - 4 mm 2

1 2 3 4 5 6 ZK175B 5 x 25 mm 2 17 x 1.5 - 4 mm 2 ZK175G 5 x 25 mm 2 17 x 1.5 - 4 mm 2

1 2 3 4 5 6 7 ZK206B 6 x 25 mm 2 20 x 1.5 - 4 mm 2 ZK206G 6 x 25 mm 2 20 x 1.5 - 4 mm 2
