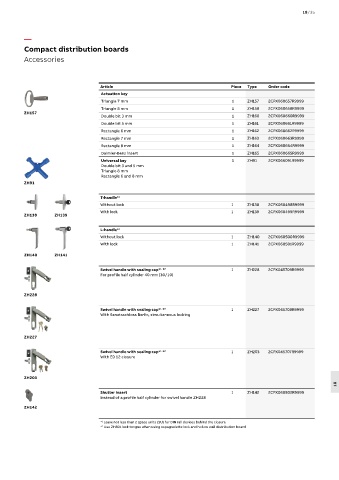

18/35

—
Compact distribution boards
Accessories

Article Piece Type Order code
Actuation key
Triangle 7 mm 1 ZH157 2CPX060657R9999
Triangle 8 mm 1 ZH158 2CPX060658R9999
ZH157
Double bit 3 mm 1 ZH160 2CPX060660R9999
Double bit 5 mm 1 ZH161 2CPX060661R9999
Rectangle 6 mm 1 ZH162 2CPX060662R9999
Rectangle 7 mm 1 ZH163 2CPX060663R9999
Rectangle 8 mm 1 ZH164 2CPX060664R9999
Daimler-Benz insert 1 ZH165 2CPX060665R9999
Universal key 1 ZH91 2CPX066091R9999
Double bit 3 and 5 mm
Triangle 8 mm
Rectangle 6 and 8 mm
ZH91

T-handle* 1
Without lock 1 ZH138 2CPX060498R9999
With lock 1 ZH139 2CPX060499R9999
ZH138 ZH139

L-handle* 1
Without lock 1 ZH140 2CPX060500R9999
With lock 1 ZH141 2CPX060501R9999
ZH140 ZH141

Swivel handle with sealing cap* * 2 1 ZH228 2CPX045709R9999
1
For profile half cylinder 40 mm (30/10)

ZH228

Swivel handle with sealing cap* * 2 1 ZH227 2CPX045708R9999
1
With Senatsschloss Berlin, simultaneous locking

ZH227

Swivel handle with sealing cap* * 2 1 ZH203 2CPX045707R9999
1
With E0 12 closure

ZH203
18
Shutter insert 1 ZH142 2CPX060502R9999
Instead of a profile half cylinder for swivel handle ZH228
ZH142

* 1 Leave not less than 2 space units (SU) for DIN rail devices behind the closure
* 2 Use ZH801 lock tongue when using espagnolette lock and hollow wall distribution board
