18/40 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

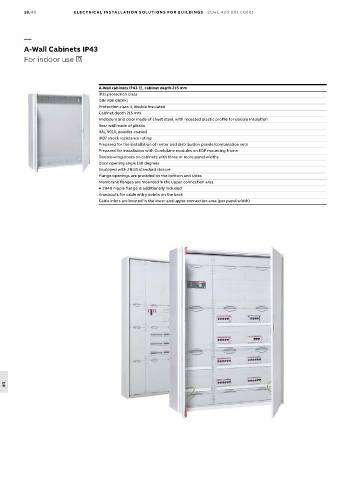

A-Wall Cabinets IP43
For indoor use ,

A-Wall cabinets IP43 ,, cabinet depth 215 mm
IP31 protection class
DIN VDE 0603-1
Protection class II, double insulated
Cabinet depth 215 mm
Enclosure and door made of sheet steel, with recessed plastic profile for double insulation
Rear wall made of plastic
RAL 9016, powder-coated
IK07 shock resistance rating
Prepared for the installation of meter and distribution panels/combination sets
Prepared for installation with CombiLine modules on EDF mounting frame
Double-wing doors on cabinets with three or more panel widths
Door opening angle 130 degrees
Equipped with ZB113 standard closure
Flange openings are provided on the bottom and sides
Membrane flanges are mounted in the upper connection area
A ZB40 nipple flange is additionally included
Knockouts for cable entry points on the back
Cable inlets are located in the lower and upper connection area (per panel width)

18
