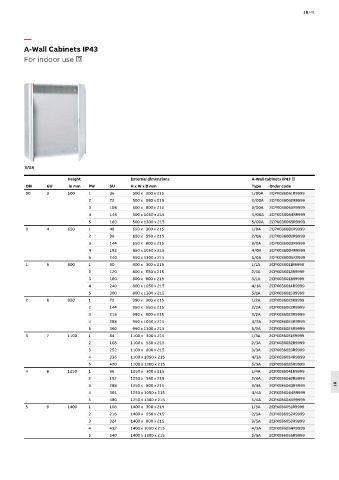

A-Wall Cabinets IP43
For indoor use ,

3/2A

Height External dimensions A-Wall cabinets IP43 ,
OH GU in mm PW SU H x W x D mm Type Order code
00 3 500 1 36 500 x 300 x 215 1/00A 2CPX036061R9999
2 72 500 x 550 x 215 2/00A 2CPX036062R9999
3 108 500 x 800 x 215 3/00A 2CPX036063R9999
4 144 500 x 1050 x 215 4/00A 2CPX036064R9999
5 180 500 x 1300 x 215 5/00A 2CPX036065R9999
0 4 650 1 48 650 x 300 x 215 1/0A 2CPX036001R9999
2 96 650 x 550 x 215 2/0A 2CPX036002R9999
3 144 650 x 800 x 215 3/0A 2CPX036003R9999
4 192 650 x 1050 x 215 4/0A 2CPX036004R9999
5 240 650 x 1300 x 215 5/0A 2CPX036005R9999
1 5 800 1 60 800 x 300 x 215 1/1A 2CPX036011R9999
2 120 800 x 550 x 215 2/1A 2CPX036012R9999
3 180 800 x 800 x 215 3/1A 2CPX036013R9999
4 240 800 x 1050 x 215 4/1A 2CPX036014R9999
5 300 800 x 1300 x 215 5/1A 2CPX036015R9999
2 6 950 1 72 950 x 300 x 215 1/2A 2CPX036021R9999
2 144 950 x 550 x 215 2/2A 2CPX036022R9999
3 216 950 x 800 x 215 3/2A 2CPX036023R9999
4 288 950 x 1050 x 215 4/2A 2CPX036024R9999
5 360 950 x 1300 x 215 5/2A 2CPX036025R9999
3 7 1100 1 84 1100 x 300 x 215 1/3A 2CPX036031R9999
2 168 1100 x 550 x 215 2/3A 2CPX036032R9999
3 252 1100 x 800 x 215 3/3A 2CPX036033R9999
4 336 1100 x 1050 x 215 4/3A 2CPX036034R9999
5 420 1100 x 1300 x 215 5/3A 2CPX036035R9999
4 8 1250 1 96 1250 x 300 x 215 1/4A 2CPX036041R9999
2 192 1250 x 550 x 215 2/4A 2CPX036042R9999
3 288 1250 x 800 x 215 3/4A 2CPX036043R9999 18
4 384 1250 x 1050 x 215 4/4A 2CPX036044R9999
5 480 1250 x 1300 x 215 5/4A 2CPX036045R9999
5 9 1400 1 108 1400 x 300 x 215 1/5A 2CPX036051R9999
2 216 1400 x 550 x 215 2/5A 2CPX036052R9999
3 324 1400 x 800 x 215 3/5A 2CPX036053R9999
4 432 1400 x 1050 x 215 4/5A 2CPX036054R9999
5 540 1400 x 1300 x 215 5/5A 2CPX036055R9999
