18/54 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

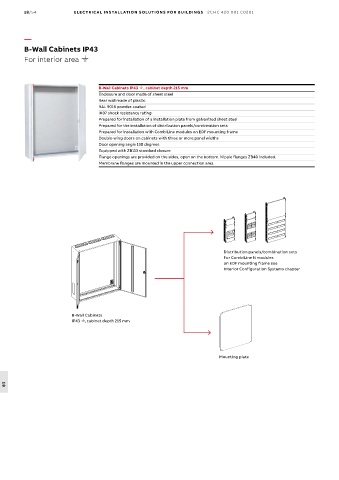

B-Wall Cabinets IP43
For interior area .

B-Wall Cabinets IP43 ., cabinet depth 215 mm
Enclosure and door made of sheet steel
Rear wall made of plastic
RAL 9016 powder-coated
IK07 shock resistance rating
Prepared for installation of a installation plate from galvanized sheet steel
Prepared for the installation of distribution panels/combination sets
Prepared for installation with CombiLine modules on EDF mounting frame
Double-wing doors on cabinets with three or more panel widths
Door opening angle 130 degrees
Equipped with ZB113 standard closure
Flange openings are provided on the sides, open on the bottom. Nipple flanges ZB40 included.
Membrane flanges are mounted in the upper connection area

Distribution panels/combination sets
For CombiLine N modules
on EDF mounting frame see
Interior Configuration Systems chapter

B-Wall Cabinets
IP43 ., cabinet depth 215 mm

Mounting plate

18
