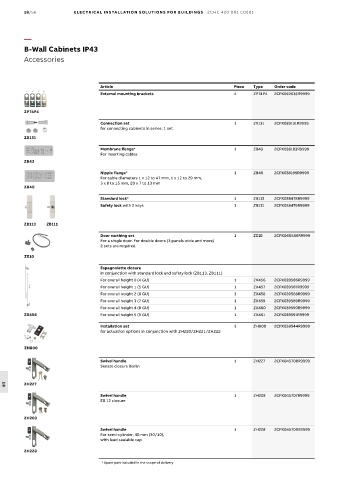

18/56 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
B-Wall Cabinets IP43
Accessories

Article Piece Type Order code
External mounting brackets 4 ZP74P4 2CPX062636R9999

ZP74P4
Connection set 1 ZX131 2CPX039131R9999
for connecting cabinets in series, 1 set
ZX131
Membrane flange* 1 ZB43 2CPX038183R9999
For inserting cables
ZB43
Nipple flange* 1 ZB40 2CPX038195R9999
For cable diameters 1 x 12 to 47 mm, 1 x 12 to 29 mm,
3 x 8 to 15 mm, 20 x 7 to 13 mm
ZB40
Standard lock* 1 ZB113 2CPX038478R9999
Safety lock with 2 keys 1 ZB111 2CPX038479R9999

ZB113 ZB111
Door earthing set 1 ZE10 2CPX060586R9999
For a single door. For double doors (3 panels wide and more)
2 sets are required.

ZE10
Espagnolette closure
In conjunction with standard lock and safety lock (ZB113, ZB111)
For overall height 0 (4 GU) 1 ZX456 2CPX039586R9999
For overall height 1 (5 GU) 1 ZX457 2CPX039587R9999
For overall height 2 (6 GU) 1 ZX458 2CPX039588R9999
For overall height 3 (7 GU) 1 ZX459 2CPX039589R9999
For overall height 4 (8 GU) 1 ZX460 2CPX039590R9999
ZX456 For overall height 5 (9 GU) 1 ZX461 2CPX039591R9999

Installation set 1 ZH800 2CPX038544R9999
for actuation options in conjunction with ZH220/ZH221/ZH222

ZH800

Swivel handle 1 ZH227 2CPX045708R9999
Senate closure Berlin

ZH227
18
Swivel handle 1 ZH203 2CPX045707R9999
E0 12 closure

ZH203

Swivel handle 1 ZH228 2CPX045709R9999
For semi-cylinder, 40 mm (30/10),
with lead sealable cap
ZH228

* Spare part included in the scope of delivery
