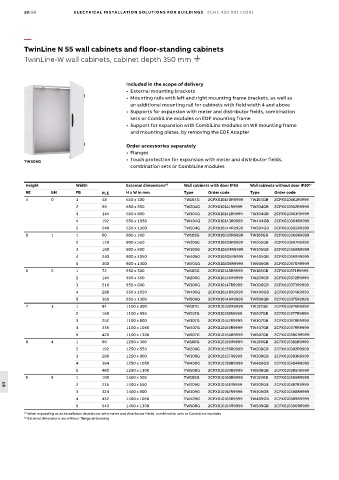

18/88 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
TwinLine N 55 wall cabinets and floor-standing cabinets
TwinLine-W wall cabinets, cabinet depth 350 mm .

Included in the scope of delivery
• External mounting brackets
• Mounting rails with left and right mounting frame brackets, as well as
an additional mounting rail for cabinets with field width 4 and above
• Supports for expansion with meter and distributor fields, combination
sets or CombiLine modules on EDF mounting frame
• Support for expansion with CombiLine modules on WR mounting frame
and mounting plates, by removing the EDF Adapter

Order accessories separately
• Flanges
TW306G • Touch protection for expansion with meter and distributor fields,
combination sets or CombiLine modules

Height Width External dimensions* 2 Wall cabinets with door IP55 Wall cabinets without door IP30* 1
RE BH FB PLE H x W in mm Type Order code Type Order code
4 0 1 48 650 x 300 TW104G 2CPX010140R9999 TW104GB 2CPX010361R9999
2 96 650 x 550 TW204G 2CPX010141R9999 TW204GB 2CPX010362R9999
3 144 650 x 800 TW304G 2CPX010142R9999 TW304GB 2CPX010363R9999
4 192 650 x 1050 TW404G 2CPX010143R9999 TW404GB 2CPX010364R9999
5 240 650 x 1300 TW504G 2CPX010144R9999 TW504GB 2CPX010365R9999
5 1 1 60 800 x 300 TW105G 2CPX010202R9999 TW105GB 2CPX010366R9999
2 120 800 x 550 TW205G 2CPX010203R9999 TW205GB 2CPX010367R9999
3 180 800 x 800 TW305G 2CPX010204R9999 TW305GB 2CPX010368R9999
4 240 800 x 1050 TW405G 2CPX010205R9999 TW405GB 2CPX010369R9999
5 300 800 x 1300 TW505G 2CPX010206R9999 TW505GB 2CPX010370R9999
6 2 1 72 950 x 300 TW106G 2CPX010145R9999 TW106GB 2CPX010371R9999
2 144 950 x 550 TW206G 2CPX010146R9999 TW206GB 2CPX010372R9999
3 216 950 x 800 TW306G 2CPX010147R9999 TW306GB 2CPX010373R9999
4 288 950 x 1050 TW406G 2CPX010148R9999 TW406GB 2CPX010374R9999
5 360 950 x 1300 TW506G 2CPX010149R9999 TW506GB 2CPX010375R9999
7 3 1 84 1100 x 300 TW107G 2CPX010150R9999 TW107GB 2CPX010376R9999
2 168 1100 x 550 TW207G 2CPX010151R9999 TW207GB 2CPX010377R9999
3 252 1100 x 800 TW307G 2CPX010152R9999 TW307GB 2CPX010378R9999
4 336 1100 x 1050 TW407G 2CPX010153R9999 TW407GB 2CPX010379R9999
5 420 1100 x 1300 TW507G 2CPX010154R9999 TW507GB 2CPX010380R9999
8 4 1 96 1250 x 300 TW108G 2CPX010155R9999 TW108GB 2CPX010381R9999
2 192 1250 x 550 TW208G 2CPX010156R9999 TW208GB 2CPX010382R9999
3 288 1250 x 800 TW308G 2CPX010157R9999 TW308GB 2CPX010383R9999
4 384 1250 x 1050 TW408G 2CPX010158R9999 TW408GB 2CPX010384R9999
5 480 1250 x 1300 TW508G 2CPX010159R9999 TW508GB 2CPX010385R9999
9 5 1 108 1400 x 300 TW109G 2CPX010160R9999 TW109GB 2CPX010386R9999
2 216 1400 x 550 TW209G 2CPX010161R9999 TW209GB 2CPX010387R9999
18
3 324 1400 x 800 TW309G 2CPX010162R9999 TW309GB 2CPX010388R9999
4 432 1400 x 1050 TW409G 2CPX010163R9999 TW409GB 2CPX010389R9999
5 540 1400 x 1300 TW509G 2CPX010164R9999 TW509GB 2CPX010390R9999
* 1 When expanding as an installation distributor with meter and distributor fields, combination sets or CombiLine modules
* 2 External dimensions are without flange embossing.
