18/89

—

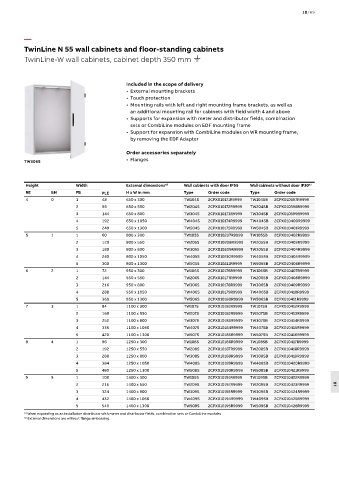

TwinLine N 55 wall cabinets and floor-standing cabinets
TwinLine-W wall cabinets, cabinet depth 350 mm .

Included in the scope of delivery
• External mounting brackets
• Touch protection
• Mounting rails with left and right mounting frame brackets, as well as
an additional mounting rail for cabinets with field width 4 and above
• Supports for expansion with meter and distributor fields, combination
sets or CombiLine modules on EDF mounting frame
• Support for expansion with CombiLine modules on WR mounting frame,
by removing the EDF Adapter

Order accessories separately
TW306S • Flanges

Height Width External dimensions* 2 Wall cabinets with door IP55 Wall cabinets without door IP30* 1
RE BH FB PLE H x W in mm Type Order code Type Order code
4 0 1 48 650 x 300 TW104S 2CPX010171R9999 TW104SB 2CPX010397R9999
2 96 650 x 550 TW204S 2CPX010172R9999 TW204SB 2CPX010398R9999
3 144 650 x 800 TW304S 2CPX010173R9999 TW304SB 2CPX010399R9999
4 192 650 x 1050 TW404S 2CPX010174R9999 TW404SB 2CPX010400R9999
5 240 650 x 1300 TW504S 2CPX010175R9999 TW504SB 2CPX010401R9999
5 1 1 60 800 x 300 TW105S 2CPX010207R9999 TW105SB 2CPX010402R9999
2 120 800 x 550 TW205S 2CPX010208R9999 TW205SB 2CPX010403R9999
3 180 800 x 800 TW305S 2CPX010209R9999 TW305SB 2CPX010404R9999
4 240 800 x 1050 TW405S 2CPX010210R9999 TW405SB 2CPX010405R9999
5 300 800 x 1300 TW505S 2CPX010211R9999 TW505SB 2CPX010406R9999
6 2 1 72 950 x 300 TW106S 2CPX010176R9999 TW106SB 2CPX010407R9999
2 144 950 x 550 TW206S 2CPX010177R9999 TW206SB 2CPX010408R9999
3 216 950 x 800 TW306S 2CPX010178R9999 TW306SB 2CPX010409R9999
4 288 950 x 1050 TW406S 2CPX010179R9999 TW406SB 2CPX010410R9999
5 360 950 x 1300 TW506S 2CPX010180R9999 TW506SB 2CPX010411R9999
7 3 1 84 1100 x 300 TW107S 2CPX010181R9999 TW107SB 2CPX010412R9999
2 168 1100 x 550 TW207S 2CPX010182R9999 TW207SB 2CPX010413R9999
3 252 1100 x 800 TW307S 2CPX010183R9999 TW307SB 2CPX010414R9999
4 336 1100 x 1050 TW407S 2CPX010184R9999 TW407SB 2CPX010415R9999
5 420 1100 x 1300 TW507S 2CPX010185R9999 TW507SB 2CPX010416R9999
8 4 1 96 1250 x 300 TW108S 2CPX010186R9999 TW108SB 2CPX010417R9999
2 192 1250 x 550 TW208S 2CPX010187R9999 TW208SB 2CPX010418R9999
3 288 1250 x 800 TW308S 2CPX010188R9999 TW308SB 2CPX010419R9999
4 384 1250 x 1050 TW408S 2CPX010189R9999 TW408SB 2CPX010420R9999
5 480 1250 x 1300 TW508S 2CPX010190R9999 TW508SB 2CPX010421R9999
9 5 1 108 1400 x 300 TW109S 2CPX010191R9999 TW109SB 2CPX010422R9999
2 216 1400 x 550 TW209S 2CPX010192R9999 TW209SB 2CPX010423R9999 18
3 324 1400 x 800 TW309S 2CPX010193R9999 TW309SB 2CPX010424R9999
4 432 1400 x 1050 TW409S 2CPX010194R9999 TW409SB 2CPX010425R9999
5 540 1400 x 1300 TW509S 2CPX010195R9999 TW509SB 2CPX010426R9999
* 1 When expanding as an installation distributor with meter and distributor fields, combination sets or CombiLine modules
* 2 External dimensions are without flange embossing.
