18/106 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

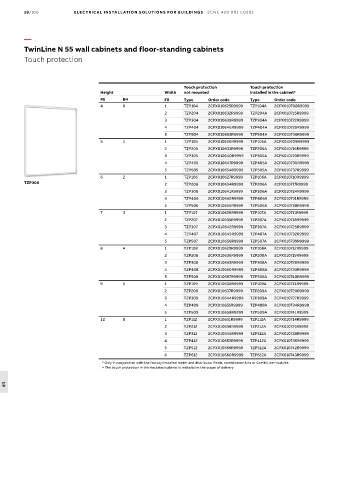

TwinLine N 55 wall cabinets and floor-standing cabinets
Touch protection

Touch protection Touch protection
Height Width not mounted Installed in the cabinet*
RE BH FB Type Order code Type Order code
4 0 1 TZP104 2CPX010625R9999 TZP104A 2CPX010708R9999
2 TZP204 2CPX010632R9999 TZP204A 2CPX010715R9999
3 TZP304 2CPX010639R9999 TZP304A 2CPX010722R9999
4 TZP404 2CPX010646R9999 TZP404A 2CPX010729R9999
5 TZP504 2CPX010653R9999 TZP504A 2CPX010736R9999
5 1 1 TZP105 2CPX010626R9999 TZP105A 2CPX010709R9999
2 TZP205 2CPX010633R9999 TZP205A 2CPX010716R9999
3 TZP305 2CPX010640R9999 TZP305A 2CPX010723R9999
4 TZP405 2CPX010647R9999 TZP405A 2CPX010730R9999
5 TZP505 2CPX010654R9999 TZP505A 2CPX010737R9999
6 2 1 TZP106 2CPX010627R9999 TZP106A 2CPX010710R9999
TZP306 2 TZP206 2CPX010634R9999 TZP206A 2CPX010717R9999
3 TZP306 2CPX010641R9999 TZP306A 2CPX010724R9999
4 TZP406 2CPX010648R9999 TZP406A 2CPX010731R9999
5 TZP506 2CPX010655R9999 TZP506A 2CPX010738R9999
7 3 1 TZP107 2CPX010628R9999 TZP107A 2CPX010711R9999
2 TZP207 2CPX010635R9999 TZP207A 2CPX010718R9999
3 TZP307 2CPX010642R9999 TZP307A 2CPX010725R9999
4 TZP407 2CPX010649R9999 TZP407A 2CPX010732R9999
5 TZP507 2CPX010656R9999 TZP507A 2CPX010739R9999
8 4 1 TZP108 2CPX010629R9999 TZP108A 2CPX010712R9999
2 TZP208 2CPX010636R9999 TZP208A 2CPX010719R9999
3 TZP308 2CPX010643R9999 TZP308A 2CPX010726R9999
4 TZP408 2CPX010650R9999 TZP408A 2CPX010733R9999
5 TZP508 2CPX010657R9999 TZP508A 2CPX010740R9999
9 5 1 TZP109 2CPX010630R9999 TZP109A 2CPX010713R9999
2 TZP209 2CPX010637R9999 TZP209A 2CPX010720R9999
3 TZP309 2CPX010644R9999 TZP309A 2CPX010727R9999
4 TZP409 2CPX010651R9999 TZP409A 2CPX010734R9999
5 TZP509 2CPX010658R9999 TZP509A 2CPX010741R9999
12 8 1 TZP112 2CPX010631R9999 TZP112A 2CPX010714R9999
2 TZP212 2CPX010638R9999 TZP212A 2CPX010721R9999
3 TZP312 2CPX010645R9999 TZP312A 2CPX010728R9999
4 TZP412 2CPX010652R9999 TZP412A 2CPX010735R9999
5 TZP512 2CPX010659R9999 TZP512A 2CPX010742R9999
6 TZP612 2CPX010660R9999 TZP612A 2CPX010743R9999
* Only in conjunction with the factory-installed meter and distributor fields, combination kits or CombiLine modules
> The touch protection in the insulated cabinet is included in the scope of delivery
