18/111

—

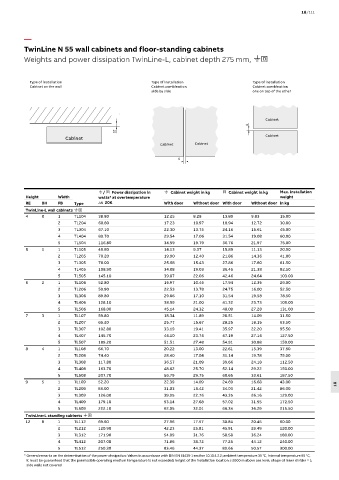

TwinLine N 55 wall cabinets and floor-standing cabinets
Weights and power dissipation TwinLine-L, cabinet depth 275 mm, .,

Type of installation Type of installation Type of installation
Cabinet on the wall Cabinet combination Cabinet combination
side by side one on top of the other

Cabinet
4
12
Cabinet
Cabinet
Cabinet Cabinet

4

./ , Power dissipation in . Cabinet weight in kg , Cabinet weight in kg Max. installation
Height Width watts* at overtemperature weight
RE BH FB Type t 20K With door Without door With door Without door in kg
TwinLine-L wall cabinets .,
4 0 1 TL104 38.80 12.25 8.28 13.80 9.83 15.00
2 TL204 60.80 17.23 10.97 18.94 12.72 30.00
3 TL304 67.10 22.30 13.75 24.16 15.61 45.00
4 TL404 89.70 29.54 17.06 31.54 19.08 60.00
5 TL504 116.80 34.59 19.79 36.76 21.97 75.00
5 1 1 TL105 45.80 14.13 9.37 15.89 11.13 20.50
2 TL205 70.20 19.90 12.40 21.86 14.36 41.00
3 TL305 78.00 25.68 15.43 27.86 17.60 61.50
4 TL405 108.90 34.08 19.03 36.45 21.38 82.50
5 TL505 145.10 39.87 22.06 42.46 24.64 103.00
6 2 1 TL106 52.80 15.97 10.45 17.94 12.35 26.00
2 TL206 59.90 22.53 13.78 24.75 16.00 52.50
3 TL306 89.80 29.06 17.10 31.54 19.58 78.50
4 TL406 128.10 38.59 21.00 41.32 23.73 105.00
5 TL506 168.00 45.14 24.32 48.09 27.28 131.00
7 3 1 TL107 59.80 18.34 11.89 20.51 14.09 31.50
2 TL207 65.20 25.77 15.67 28.25 18.15 63.50
3 TL307 102.80 33.19 19.41 35.97 22.20 95.50
4 TL407 145.70 44.10 23.74 47.19 27.14 127.50
5 TL507 189.20 51.51 27.48 54.91 30.88 159.00
8 4 1 TL108 66.70 20.22 13.00 22.61 15.39 37.50
2 TL208 74.40 28.40 17.04 31.14 19.78 75.00
3 TL308 117.80 36.57 21.09 39.66 24.18 112.50
4 TL408 163.70 48.62 25.70 52.14 29.22 150.00
5 TL508 207.70 56.79 29.75 60.65 33.61 187.50
9 5 1 TL109 52.20 22.39 14.09 24.69 16.68 43.00 18
2 TL209 86.00 31.03 18.42 34.03 21.42 86.00
3 TL309 126.00 39.95 22.76 43.35 26.16 129.00
4 TL409 179.10 53.14 27.68 57.02 31.55 172.50
5 TL509 222.10 62.05 32.01 66.34 36.29 215.50
TwinLine-L standing cabinets .,
12 8 1 TL112 69.60 27.96 17.57 30.84 20.45 60.00
2 TL212 120.90 42.23 25.81 45.91 29.49 120.00
3 TL312 171.90 54.09 31.76 58.58 36.24 180.00
4 TL412 207.00 71.86 38.72 77.25 44.12 240.00
5 TL512 250.30 83.46 44.37 89.66 50.57 300.00
* General remarks on the determination of the power dissipation: Values in accordance with DIN EN 61439-1 section 10.10.4.2.2; ambient temperature 35 °C, internal temperature 55 °C,
it must be guaranteed that the permissible operating medium temperature is not exceeded; height of the installation location ≤ 2000 m above sea level; shape of inner divider = 1;
side walls not covered
