P. 2437

18/109




         —

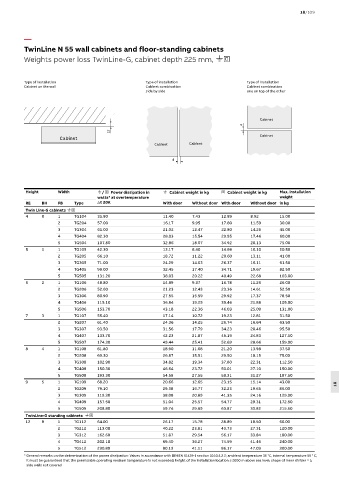

         TwinLine N 55 wall cabinets and floor-standing cabinets
         Weights power loss TwinLine-G, cabinet depth 225 mm, .,




         Type of installation                       Type of installation                Type of installation
         Cabinet on the wall                        Cabinet combination                 Cabinet combination
                                                    side by side                        one on top of the other




                                                                                            Cabinet
                                                                                      4
                                        12
                                                                                            Cabinet
                      Cabinet
                                                       Cabinet     Cabinet

                                                             4






          Height     Width         ./ , Power dissipation in   . Cabinet weight in kg  , Cabinet weight in kg  Max. installation
                                   watts* at overtemperature                                       weight
          RE    BH   FB    Type     t 20K                 With door  Without door With door  Without door in kg

          Twin Line-G cabinets .,
          4     0    1     TG104   35.80                  11.40      7.43      12.89     8.92      15.00
                     2     TG204   57.00                  16.17      9.95      17.80     11.59     30.00
                     3     TG304   61.00                  21.02      12.47     22.80     14.25     45.00
                     4     TG404   82.30                  28.03      15.54     29.95     17.46     60.00
                     5     TG504   107.80                 32.86      18.07     34.92     20.13     75.00
          5     1    1     TG105   42.30                  13.17     8.40       14.86     10.10     20.50
                     2     TG205   66.10                  18.72     11.22      20.60     13.11     41.00
                     3     TG305   71.00                  24.29     14.03      26.37     16.11     61.50
                     4     TG405   99.00                  32.45     17.40      34.71     19.67     82.50
                     5     TG505   131.20                 38.03     20.22      40.49     22.68     103.00
          6     2    1     TG106   48.80                  14.89     9.37       16.78     11.26     26.00
                     2     TG206   52.60                  21.23     12.43      23.36     14.61     52.50
                     3     TG306   80.90                  27.55     15.59      29.92     17.37     78.50
                     4     TG406   115.10                 36.84     19.25      39.46     21.86     105.00
                     5     TG506   153.70                 43.18     22.36      46.03     25.09     131.00
          7     3    1     TG107   55.40                  17.14     10.72      19.23     12.81     31.50
                     2     TG207   61.40                  24.36     14.25      26.74     16.64     63.50
                     3     TG307   93.50                  31.56     17.79      34.23     20.46     95.50
                     4     TG407   133.70                 42.23     21.87      45.19     24.83     127.50
                     5     TG507   174.30                 49.44     25.41      52.69     28.66     159.00
          8     4    1     TG108   61.80                  18.90     11.68      21.20     13.98     37.50
                     2     TG208   69.30                  26.87     15.51      29.50     18.15     75.00
                     3     TG308   102.90                 34.82     19.34      37.80     22.31     112.50
                     4     TG408   150.30                 46.64     23.72      50.01     27.10     150.00
                     5     TG508   193.30                 54.59     27.55      58.31     31.27     187.50
          9     5    1     TG109   68.20                  20.66     12.65      23.15     15.14     43.00               18
                     2     TG209   79.10                  29.38     16.77      32.23     19.65     86.00
                     3     TG309   119.30                 38.08     20.89      41.35     24.16     129.00
                     4     TG409   157.50                 51.04     25.57      54.77     29.31     172.50
                     5     TG509   208.80                 59.74     29.69      63.87     33.82     215.50
          TwinLine-G standing cabinets  .,
          12    8    1     TG112   64.00                  26.17     15.78      28.89     18.50     60.00
                     2     TG212   113.00                 40.22     23.81      43.73     27.31     120.00
                     3     TG312   162.60                 51.87     29.54      56.17     33.84     180.00
                     4     TG412   202.10                 69.40     36.27      74.59     41.46     240.00
                     5     TG512   230.80                 80.19     41.11      86.17     47.09     300.00
         *  General remarks on the determination of the power dissipation: Values in accordance with DIN EN 61439-1 section 10.10.4.2.2; ambient temperature 35 °C, internal temperature 55 ° C,
          it must be guaranteed that the permissible operating medium temperature is not exceeded; height of the installation location ≤ 2000 m above sea level; shape of inner divider = 1;
          side walls not covered
