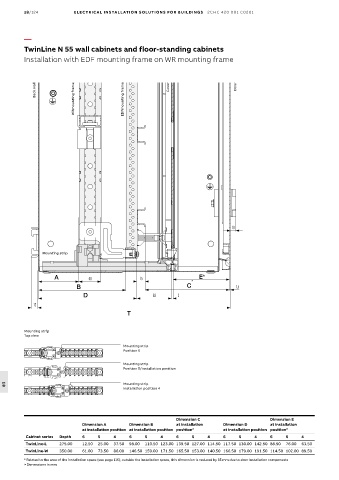

TwinLine N 55 wall cabinets and floor-standing cabinets
Installation with EDF mounting frame on WR mounting frame

WRmounting frame EDFmounting frame
Back wall Cover Door

Mounting strip

E*

Mounting strip
Top view
Mounting strip
Position 6

Mounting strip
Position 5/installation position

Mounting strip
Installation position 4
18

Dimension C Dimension E
Dimension A Dimension B at installation Dimension D at installation
at installation position at installation position position* at installation position position*
Cabinet series Depth 6 5 4 6 5 4 6 5 4 6 5 4 6 5 4
TwinLine-L 275.00 12.50 25.00 37.50 98.00 110.50 123.00 139.50 127.00 114.50 117.50 130.00 142.50 88.50 76.00 63.50
TwinLine-W 350.00 61.00 73.50 86.00 146.50 159.00 171.50 165.50 153.00 140.50 166.50 179.00 191.50 114.50 102.00 89.50
* Related to the area of the installation space (see page 116); outside the installation space, this dimension is reduced by 35 mm due to door installation components

> Dimensions in mm
