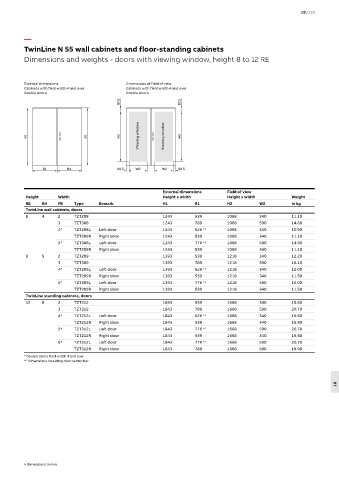

TwinLine N 55 wall cabinets and floor-standing cabinets
Dimensions and weights - doors with viewing window, height 8 to 12 RE

External dimensions Dimensions of field of view
Cabinets with field width 4 and over Cabinets with field width 4 and over
Double doors Double doors
87.5 87.5

Viewing window

H1 H1 H2 Viewing window H2

B1 B1 99.5 W2 W2 99.5

External dimensions Field of view
Height Width Height x width Height x width Weight
RE BH FB Type Remark H1 B1 H2 W2 in kg
TwinLine wall cabinets, doors
8 4 2 TZT208 1243 539 1068 340 11.10
3 TZT308 1243 789 1068 590 14.60
4* TZT208L Left door 1243 526 * 2 1068 340 10.90
TZT208R Right door 1243 539 1068 340 11.10
5* TZT308L Left door 1243 776 * 2 1068 590 14.60
TZT208R Right door 1243 539 1068 340 11.10
9 5 2 TZT209 1393 539 1218 340 12.20
3 TZT309 1393 789 1218 590 16.10
4* TZT209L Left door 1393 526 * 2 1218 340 12.00
TZT209R Right door 1393 539 1218 340 11.50
5* TZT309L Left door 1393 776 * 2 1218 590 16.00
TZT209R Right door 1393 539 1218 340 11.50
TwinLine standing cabinets, doors
12 8 2 TZT212 1843 539 1668 340 15.60
3 TZT312 1843 789 1668 590 20.70
4* TZT212L Left door 1843 526 * 2 1668 340 15.60
TZT212R Right door 1843 539 1668 340 15.40
5* TZT312L Left door 1843 776 * 2 1668 590 20.70
TZT212R Right door 1843 539 1668 340 15.40
6* TZT312L Left door 1843 776 * 2 1668 590 20.70
TZT312R Right door 1843 789 1668 590 19.90
* Double doors field width 4 and over
* 2 Dimensions including door center bar

18

> Dimensions in mm
