18/122 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

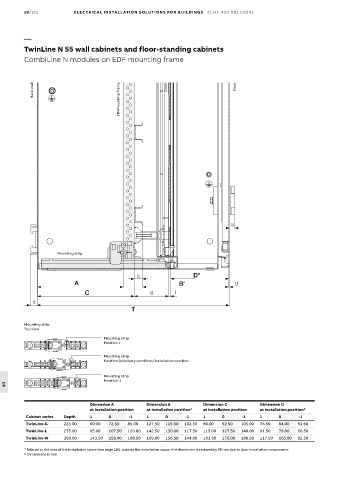

TwinLine N 55 wall cabinets and floor-standing cabinets
CombiLine N modules on EDF mounting frame

EDFmounting frame
Back wall Cover Door

Mounting strip

D*

Mounting strip
Top view
Mounting strip
Position 1

Mounting strip
Position 0/delivery condition/installation position

Mounting strip
Position -1
18

Dimension A Dimension B Dimension C Dimension D
at installation position at installation position* at installation position at installation position*
Cabinet series Depth 1 0 -1 1 0 -1 1 0 -1 1 0 -1
TwinLine-G 225.00 60.00 72.50 85.00 127.50 115.00 102.50 80.00 92.50 105.00 76.50 64.00 51.50
TwinLine-L 275.00 95.00 107.50 120.00 142.50 130.00 117.50 115.00 127.50 140.00 91.50 79.00 66.50
TwinLine-W 350.00 143.50 156.00 168.50 169.00 156.50 144.00 163.50 176.00 188.50 117.50 105.00 92.50
* Related to the area of the installation space (see page 116); outside the installation space, this dimension is reduced by 35 mm due to door installation components

> Dimensions in mm
