P. 2457
18/129
—

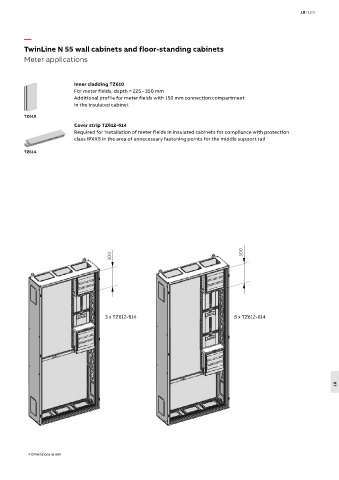

TwinLine N 55 wall cabinets and floor-standing cabinets
Meter applications
Inner cladding TZ610
For meter fields, depth = 225 - 350 mm
Additional profile for meter fields with 150 mm connection compartment
in the insulated cabinet
TZ610
Cover strip TZ612-614
Required for installation of meter fields in insulated cabinets for compliance with protection
class IPXXB in the area of unnecessary fastening points for the middle support rail
TZ614
300 300
3 x TZ612-614 5 x TZ612-614
18
> Dimensions in mm
