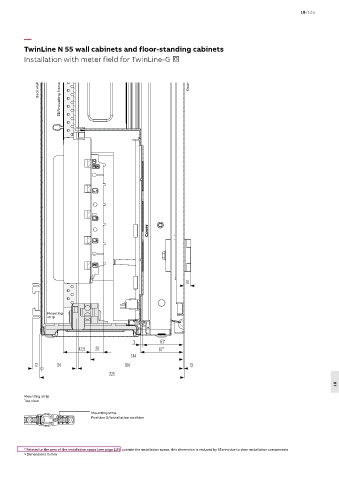

TwinLine N 55 wall cabinets and floor-standing cabinets
Installation with meter field for TwinLine-G ,
Back wall Door
EDFmounting frame
Cover
Mounting
strip
18
Mounting strip
Top view
Mounting strip
Position 0/installation position
* Related to the area of the installation space (see page 116); outside the installation space, this dimension is reduced by 35 mm due to door installation components
> Dimensions in mm
