18/121

—

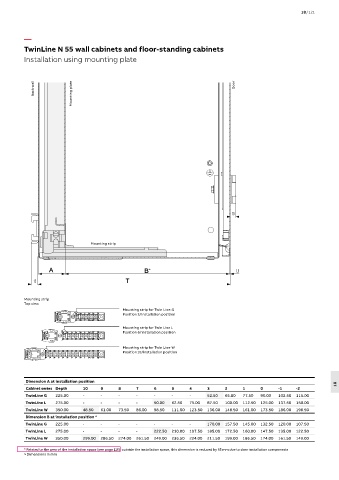

TwinLine N 55 wall cabinets and floor-standing cabinets
Installation using mounting plate

Back wall Mounting plate Door

Mounting strip

Mounting strip
Top view
Mounting strip for Twin Line-G
Position 3/installation position

Mounting strip for Twin Line L
Position 6/installation position

Mounting strip for Twin Line-W
Position 10/installation position

Dimension A at installation position
18
Cabinet series Depth 10 9 8 7 6 5 4 3 2 1 0 -1 -2
TwinLine G 225.00 - - - - - - - 52.50 65.00 77.50 90.00 102.50 115.00
TwinLine L 275.00 - - - - 50.00 62.50 75.00 87.50 100.00 112.50 125.00 137.50 150.00
TwinLine W 350.00 48.50 61.00 73.50 86.00 98.50 111.00 123.50 136.00 148.50 161.00 173.50 186.00 198.50
Dimension B at installation position *
TwinLine G 225.00 - - - - - - - 170.00 157.50 145.00 132.50 120.00 107.50
TwinLine L 275.00 - - - - 222.50 210.00 197.50 185.00 172.50 160.00 147.50 135.00 122.50
TwinLine W 350.00 299.00 286.50 274.00 261.50 249.00 236.50 224.00 211.50 199.00 186.50 174.00 161.50 149.00
* Related to the area of the installation space (see page 116); outside the installation space, this dimension is reduced by 35 mm due to door installation components

> Dimensions in mm
