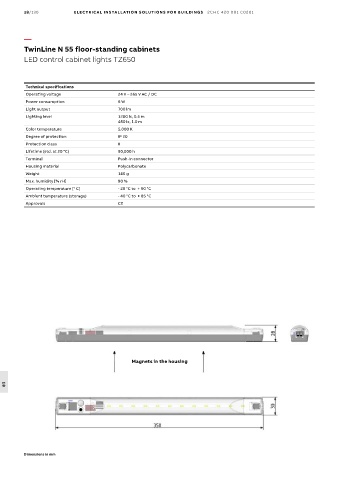

18/130 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
TwinLine N 55 floor-standing cabinets
LED control cabinet lights TZ650

Technical specifications
Operating voltage 24 V – 265 V AC / DC
Power consumption 6 W
Light output 700 lm
Lighting level 1200 lx, 0.5 m
450 lx, 1.0 m
Color temperature 5,000 K
Degree of protection IP 20
Protection class II
Lifetime (std. at 20 °C) 50,000 h
Terminal Push-in connector
Housing material Polycarbonate
Weight 140 g
Max. humidity [% rH] 90 %
Operating temperature [° C] - 20 °C to + 60 °C
Ambient temperature (storage) - 40 °C to + 85 °C
Approvals CE

Magnets in the housing

18

Dimensions in mm
