18/132 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

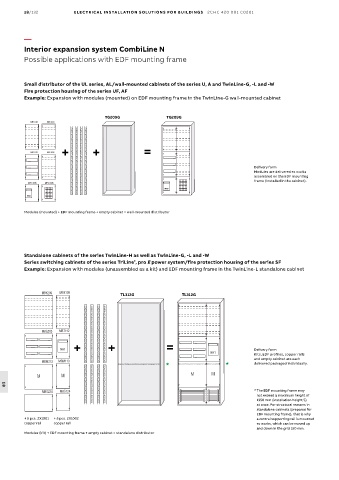

Interior expansion system CombiLine N
Possible applications with EDF mounting frame

Small distributor of the UL series, AL/wall-mounted cabinets of the series U, A and TwinLine-G, -L and -W
Fire protection housing of the series UF, AF

Example: Expansion with modules (mounted) on EDF mounting frame in the TwinLine-G wall-mounted cabinet

TG209G TG209G

Delivery form
Modules are delivered ex works
assembled on the EDF mounting
frame (installed in the cabinet).

Modules (mounted) + EDF mounting frame + empty cabinet = wall-mounted distributor

Standalone cabinets of the series TwinLine-H as well as TwinLine-G, -L and -W
Series switching cabinets of the series TriLine , pro E power system/fire protection housing of the series SF
®
Example: Expansion with modules (unassembled as a kit) and EDF mounting frame in the TwinLine-L standalone cabinet

MBK209 MBK109 TL312G 3/8C TL312G 3/8C

MBG203 MBT142

NH1 Delivery form
NH1
Kits, EDF profiles, copper rails
and empty cabinet are each
MBM213 MBM113
delivered packaged individually.
M M M M

18
MBS224 MBS124 * The EDF mounting frame may
not exceed a maximum height of
1350 mm (installation height 5)
at once. For structural reasons in
standalone cabinets (prepared for
EDF mounting frame), that is why
+ 5 pcs. ZX1001 + 5 pcs. ZX1002 a central supporting rail is mounted
copper rail copper rail ex works, which can be moved up
and down in the grid 150 mm.
Modules (kit) + EDF mounting frame + empty cabinet = standalone distributor

MK209 MK109 3/82C
3/82C

MG203 MT142

NH1
NH1
MM213 MM113

M M M M

MS224 MS124
