18/134 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

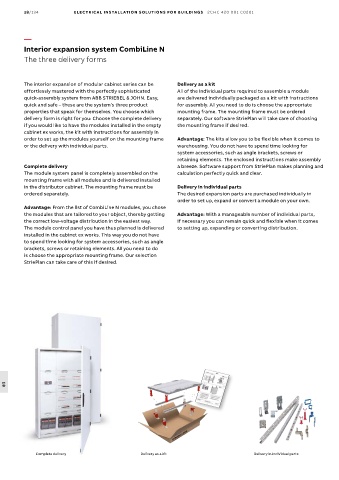

Interior expansion system CombiLine N
The three delivery forms

The interior expansion of modular cabinet series can be Delivery as a kit
effortlessly mastered with the perfectly sophisticated All of the individual parts required to assemble a module
quick-assembly system from ABB STRIEBEL & JOHN. Easy, are delivered individually packaged as a kit with instructions
quick and safe – these are the system’s three product for assembly. All you need to do is choose the appropriate
properties that speak for themselves. You choose which mounting frame. The mounting frame must be ordered
delivery form is right for you: Choose the complete delivery separately. Our software StriePlan will take care of choosing
if you would like to have the modules installed in the empty the mounting frame if desired.
cabinet ex works, the kit with instructions for assembly in
order to set up the modules yourself on the mounting frame Advantage: The kits allow you to be flexible when it comes to
or the delivery with individual parts. warehousing. You do not have to spend time looking for
system accessories, such as angle brackets, screws or
retaining elements. The enclosed instructions make assembly
Complete delivery a breeze. Software support from StriePlan makes planning and
The module system panel is completely assembled on the calculation perfectly quick and clear.
mounting frame with all modules and is delivered installed
in the distributor cabinet. The mounting frame must be Delivery in individual parts
ordered separately. The desired expansion parts are purchased individually in
order to set up, expand or convert a module on your own.
Advantage: From the list of CombiLine N modules, you chose
the modules that are tailored to your object, thereby getting Advantage: With a manageable number of individual parts,
the correct low-voltage distribution in the easiest way. if necessary you can remain quick and flexible when it comes
The module control panel you have thus planned is delivered to setting up, expanding or converting distribution.
installed in the cabinet ex works. This way you do not have
to spend time looking for system accessories, such as angle
brackets, screws or retaining elements. All you need to do
is choose the appropriate mounting frame. Our selection
StriePlan can take care of this if desired.

18

Complete delivery Delivery as a kit Delivery in individual parts
