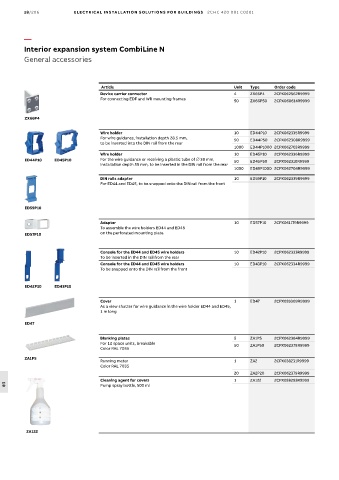

18/206 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
General accessories

Article Unit Type Order code
Device carrier connector 4 ZX66P4 2CPX062562R9999
For connecting EDF and WR mounting frames 50 ZX66P50 2CPX068614R9999

ZX66P4

Wire holder 10 ED44P10 2CPX062335R9999
For wire guidance, installation depth 28.5 mm, 50 ED44P50 2CPX062308R9999
to be inserted into the DIN rail from the rear
1000 ED44P1000 2CPX062703R9999
Wire holder 10 ED45P10 2CPX062336R9999
ED44P10 ED45P10 For the wire guidance or receiving a plastic tube of 38 mm, 50 ED45P50 2CPX062310R9999
installation depth 55 mm, to be inserted in the DIN rail from the rear
1000 ED45P1000 2CPX062704R9999
DIN rails adapter 10 ED59P10 2CPX062339R9999
For ED44 and ED45, to be snapped onto the DIN rail from the front

ED59P10

Adapter 10 ED57P10 2CPX061179R9999
To assemble the wire holders ED44 and ED45
ED57P10 on the perforated mounting plate

Console for the ED44 and ED45 wire holders 10 ED42P10 2CPX062333R9999
To be inserted in the DIN rail from the rear
Console for the ED44 and ED45 wire holders 10 ED43P10 2CPX062334R9999
To be snapped onto the DIN rail from the front

ED42P10 ED43P10

Cover 1 ED47 2CPX039309R9999
As a view shutter for wire guidance in the wire holder ED44 and ED45,
1 m long
ED47

Blanking plates 5 ZA1P5 2CPX062384R9999
For 12 space units, breakable 50 ZA1P50 2CPX062378R9999
Color RAL 7035
ZA1P5
Running meter 1 ZA2 2CPX038231R9999
Color RAL 7035
20 ZA2P20 2CPX062379R9999
Cleaning agent for covers 1 ZA122 2CPX038293R9999
Pump spray bottle, 500 ml
18

ZA122
