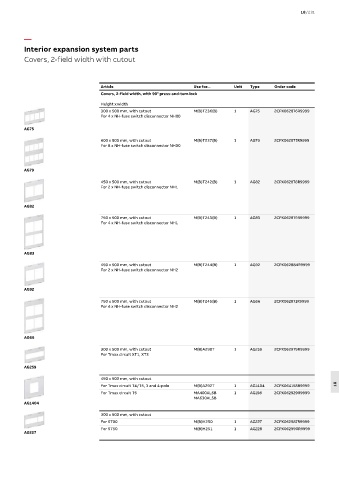

18/231

—
Interior expansion system parts
Covers, 2-field width with cutout

Article Use for... Unit Type Order code
Covers, 2-field width, with 90° press-and-turn lock
Height x width
300 x 500 mm, with cutout M(B)T236(B) 1 AG75 2CPX062876R9999
For 4 x NH-fuse switch disconnector NH00

AG75
600 x 500 mm, with cutout M(B)T237(B) 1 AG79 2CPX062877R9999
For 8 x NH-fuse switch disconnector NH00

AG79
450 x 500 mm, with cutout M(B)T242(B) 1 AG82 2CPX062878R9999
For 2 x NH-fuse switch disconnector NH1

AG82
750 x 500 mm, with cutout M(B)T243(B) 1 AG83 2CPX062879R9999
For 4 x NH-fuse switch disconnector NH1

AG83

450 x 500 mm, with cutout M(B)T244(B) 1 AG92 2CPX062884R9999
For 2 x NH-fuse switch disconnector NH2

AG92

750 x 500 mm, with cutout M(B)T245(B) 1 AG66 2CPX062871R9999
For 4 x NH-fuse switch disconnector NH2

AG66

300 x 500 mm, with cutout M(B)A290T 1 AG259 2CPX062979R9999
For Tmax circuit XT1, XT3

AG259
450 x 500 mm, with cutout
For Tmax circuit T4/T5, 3 and 4-pole M(B)A292T 1 AG1404 2CPX064158R9999 18
For Tmax circuit T5 MA400ALSB 1 AG198 2CPX062929R9999
MA630ALSB
AG1404
300 x 500 mm, with cutout
For S700 M(B)H250 1 AG227 2CPX062987R9999
For S750 M(B)H251 1 AG228 2CPX062990R9999
AG227
