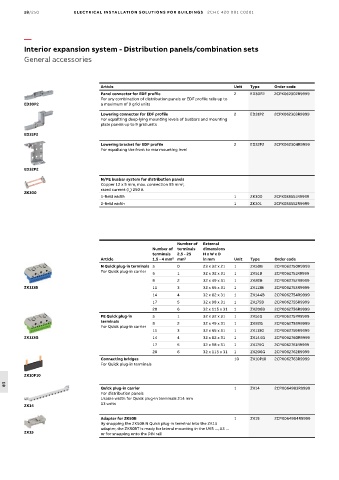

18/250 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system - Distribution panels/combination sets
General accessories

Article Unit Type Order code
Panel connector for EDF profile 2 ED30P2 2CPX062302R9999
For any combination of distribution panels or EDF profile rails up to
ED30P2 a maximum of 9 grid units
Lowering connector for EDF profile 2 ED31P2 2CPX062303R9999
For equalizing deep-lying mounting levels of busbars and mounting
plate panels up to 9 grid units
ED31P2
Lowering bracket for EDF profile 2 ED32P2 2CPX062304R9999
For equalizing the front to rear mounting level

ED32P2

N/PE busbar system for distribution panels
Copper 12 x 5 mm, max. connection 95 mm ,
2
rated current (I ) 250 A
ZK300 n
1-field width 1 ZK300 2CPX038551R9999
2-field width 1 ZK301 2CPX038552R9999

Number of External
Number of terminals dimensions
terminals 2.5 - 25 H x W x D
Article 1.5 - 4 mm 2 mm 2 in mm Unit Type Order code
N Quick plug-in terminals 5 0 23 x 32 x 21 1 ZK50B 2CPX062750R9999
For Quick plug-in carrier
5 1 32 x 32 x 31 1 ZK51B 2CPX062751R9999
8 2 32 x 49 x 31 1 ZK82B 2CPX062752R9999
ZK113B 11 3 32 x 65 x 31 1 ZK113B 2CPX062753R9999
14 4 32 x 82 x 31 1 ZK144B 2CPX062754R9999
17 5 32 x 98 x 31 1 ZK175B 2CPX062755R9999
20 6 32 x 115 x 31 1 ZK206B 2CPX062756R9999
PE Quick plug-in 5 1 32 x 32 x 31 1 ZK51G 2CPX062757R9999
terminals 8 2 32 x 49 x 31 1 ZK82G 2CPX062758R9999
For Quick plug-in carrier
11 3 32 x 65 x 31 1 ZK113G 2CPX062759R9999
ZK113G 14 4 32 x 82 x 31 1 ZK144G 2CPX062760R9999
17 5 32 x 98 x 31 1 ZK175G 2CPX062761R9999
20 6 32 x 115 x 31 1 ZK206G 2CPX062762R9999
Connecting bridges 10 ZK10P10 2CPX062763R9999
For Quick plug-in terminals

ZK10P10
Quick plug-in carrier 1 ZK14 2CPX064983R9999
18
For distribution panels
Usable width for Quick plug-in terminals 214 mm
13 units
ZK14
Adapter for ZK50B 1 ZK15 2CPX064984R9999
By snapping the ZK50B N Quick plug-in terminal into the ZK15
adapter, the ZK50BT is ready for lateral mounting in the UK5 ..., A3 ...
ZK15 or for snapping onto the DIN rail
