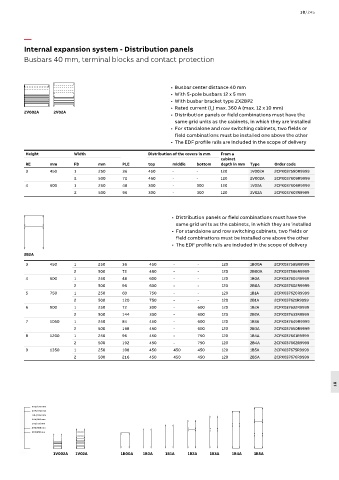

Internal expansion system - Distribution panels
Busbars 40 mm, terminal blocks and contact protection

• Busbar center distance 40 mm
• With 5-pole busbars 12 x 5 mm
• With busbar bracket type ZX2BP2
• Rated current (I ) max. 360 A (max. 12 x 10 mm)
2V002A 2V02A n
• Distribution panels or field combinations must have the
same grid units as the cabinets, in which they are installed
• For standalone and row switching cabinets, two fields or
field combinations must be installed one above the other
• The EDF profile rails are included in the scope of delivery

Height Width Distribution of the covers in mm From a
cabinet
RE mm FB mm PLE top middle bottom depth in mm Type Order code
3 450 1 250 36 450 - - 120 1V002A 2CPX037590R9999
2 500 72 450 - - 120 2V002A 2CPX037609R9999
4 600 1 250 48 300 - 300 120 1V02A 2CPX037606R9999
2 500 96 300 - 300 120 2V02A 2CPX037607R9999

• Distribution panels or field combinations must have the
same grid units as the cabinets, in which they are installed
• For standalone and row switching cabinets, two fields or
field combinations must be installed one above the other
• The EDF profile rails are included in the scope of delivery
2B2A
3 450 1 250 36 450 - - 120 1B00A 2CPX037585R9999
2 500 72 450 - - 120 2B00A 2CPX037586R9999
4 600 1 250 48 600 - - 120 1B0A 2CPX037601R9999
2 500 96 600 - - 120 2B0A 2CPX037602R9999
5 750 1 250 60 750 - - 120 1B1A 2CPX037620R9999
2 500 120 750 - - 120 2B1A 2CPX037621R9999
6 900 1 250 72 300 - 600 120 1B2A 2CPX037632R9999
2 500 144 300 - 600 120 2B2A 2CPX037633R9999
7 1050 1 250 84 450 - 600 120 1B3A 2CPX037649R9999
2 500 168 450 - 600 120 2B3A 2CPX037650R9999
8 1200 1 250 96 450 - 750 120 1B4A 2CPX037661R9999
2 500 192 450 - 750 120 2B4A 2CPX037662R9999
9 1350 1 250 108 450 450 450 120 1B5A 2CPX037675R9999
2 500 216 450 450 450 120 2B5A 2CPX037676R9999

18

9 RE/1350 mm
8 RE/1200 mm
7 RE/1050 mm
6 RE/900 mm
5 RE/750 mm
4 RE/600 mm
3 RE/450 mm

1V002A 1V02A 1B00A 1B0A 1B1A 1B2A 1B3A 1B4A 1B5A
