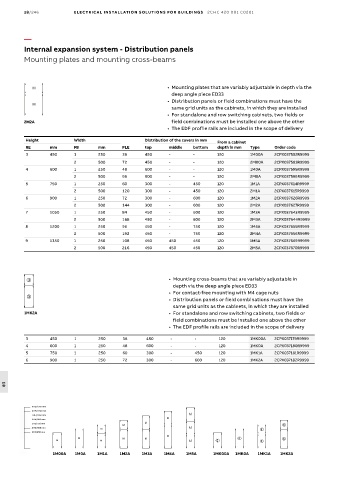

18/246 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Internal expansion system - Distribution panels
Mounting plates and mounting cross-beams

M • Mounting plates that are variably adjustable in depth via the
deep angle piece ED33
• Distribution panels or field combinations must have the
M
same grid units as the cabinets, in which they are installed
• For standalone and row switching cabinets, two fields or
2M2A field combinations must be installed one above the other
• The EDF profile rails are included in the scope of delivery
Height Width Distribution of the covers in mm
From a cabinet
RE mm FB mm PLE top middle bottom depth in mm Type Order code
3 450 1 250 36 450 - - 120 1M00A 2CPX037582R9999
2 500 72 450 - - 120 2M00A 2CPX037583R9999
4 600 1 250 48 600 - - 120 1M0A 2CPX037595R9999
2 500 96 600 - - 120 2M0A 2CPX037596R9999
5 750 1 250 60 300 - 450 120 1M1A 2CPX037614R9999
2 500 120 300 - 450 120 2M1A 2CPX037615R9999
6 900 1 250 72 300 - 600 120 1M2A 2CPX037626R9999
2 500 144 300 - 600 120 2M2A 2CPX037627R9999
7 1050 1 250 84 450 - 600 120 1M3A 2CPX037643R9999
2 500 168 450 - 600 120 2M3A 2CPX037644R9999
8 1200 1 250 96 450 - 750 120 1M4A 2CPX037655R9999
2 500 192 450 - 750 120 2M4A 2CPX037656R9999
9 1350 1 250 108 450 450 450 120 1M5A 2CPX037669R9999
2 500 216 450 450 450 120 2M5A 2CPX037670R9999

• Mounting cross-beams that are variably adjustable in
depth via the deep angle piece ED33
• For contact-free mounting with M4 cage nuts
• Distribution panels or field combinations must have the
same grid units as the cabinets, in which they are installed
1MK2A • For standalone and row switching cabinets, two fields or
field combinations must be installed one above the other
• The EDF profile rails are included in the scope of delivery

3 450 1 250 36 450 - - 120 1MK00A 2CPX037179R9999
4 600 1 250 48 600 - - 120 1MK0A 2CPX037180R9999
5 750 1 250 60 300 - 450 120 1MK1A 2CPX037181R9999
6 900 1 250 72 300 - 600 120 1MK2A 2CPX037182R9999

18

9 RE/1350 mm
8 RE/1200 mm
7 RE/1050 mm
6 RE/900 mm
5 RE/750 mm
4 RE/600 mm
3 RE/450 mm

1M00A 1M0A 1M1A 1M2A 1M3A 1M4A 1M5A 1MK00A 1MK0A 1MK1A 1MK2A
