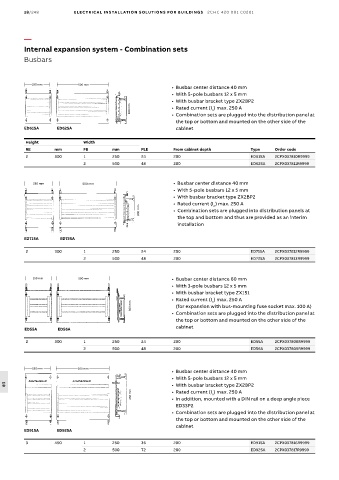

18/248 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Internal expansion system - Combination sets
Busbars

250 mm 500 mm
• Busbar center distance 40 mm
• With 5-pole busbars 12 x 5 mm
• With busbar bracket type ZX2BP2
300 mm • Rated current (I ) max. 250 A
n
• Combination sets are plugged into the distribution panel at
the top or bottom and mounted on the other side of the
ED61SA ED62SA cabinet

Height Width
RE mm FB mm PLE From cabinet depth Type Order code
2 300 1 250 24 200 ED61SA 2CPX037810R9999
2 500 48 200 ED62SA 2CPX037811R9999

250 mm 500 mm • Busbar center distance 40 mm
• With 5-pole busbars 12 x 5 mm
• With busbar bracket type ZX2BP2
• Rated current (I ) max. 250 A
n
300 mm • Combination sets are plugged into distribution panels at
the top and bottom and thus are provided as an interim
installation

ED71SA ED72SA

2 300 1 250 24 200 ED71SA 2CPX037812R9999
2 500 48 200 ED72SA 2CPX037813R9999

250 mm 500 mm • Busbar center distance 60 mm
• With 3-pole busbars 12 x 5 mm
• With busbar bracket type ZX151
• Rated current (I ) max. 250 A
n
300 mm (for expansion with bus-mounting fuse socket max. 100 A)
• Combination sets are plugged into the distribution panel at
the top or bottom and mounted on the other side of the
cabinet
ED55A ED56A
2 300 1 250 24 200 ED55A 2CPX037808R9999
2 500 48 200 ED56A 2CPX037809R9999

250 mm 500 mm
• Busbar center distance 40 mm
• With 5-pole busbars 12 x 5 mm
• With busbar bracket type ZX2BP2
18
450 mm • Rated current (I ) max. 250 A
n
• In addition, mounted with a DIN rail on a deep angle piece
ED33P2
• Combination sets are plugged into the distribution panel at
the top or bottom and mounted on the other side of the
cabinet
ED91SA ED92SA
3 450 1 250 36 200 ED91SA 2CPX037816R9999
2 500 72 200 ED92SA 2CPX037817R9999
