18/247

—

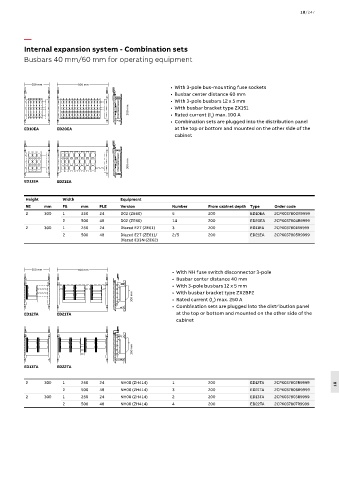

Internal expansion system - Combination sets
Busbars 40 mm/60 mm for operating equipment

250 mm 500 mm
• With 3-pole bus-mounting fuse sockets
• Busbar center distance 60 mm
• With 3-pole busbars 12 x 5 mm
300 mm • With busbar bracket type ZX151
• Rated current (I ) max. 100 A
n
• Combination sets are plugged into the distribution panel
ED10EA ED20EA at the top or bottom and mounted on the other side of the
cabinet

300 mm

ED11EA ED21EA

Height Width Equipment
RE mm FB mm PLE Version Number From cabinet depth Type Order code
2 300 1 250 24 D02 (ZE60) 5 200 ED10EA 2CPX037800R9999
2 500 48 D02 (ZE60) 14 200 ED20EA 2CPX037804R9999
2 300 1 250 24 Diazed E27 (ZE61) 3 200 ED11EA 2CPX037801R9999
2 500 48 Diazed E27 (ZE61)/ 2/5 200 ED21EA 2CPX037805R9999
Diazed E33N (ZE62)

250 mm 500 mm
• With NH fuse switch disconnector 3-pole
• Busbar center distance 40 mm
• With 3-pole busbars 12 x 5 mm
300 mm • With busbar bracket type ZX2BP2
• Rated current (I ) max. 250 A
n
• Combination sets are plugged into the distribution panel
ED12TA ED21TA at the top or bottom and mounted on the other side of the
cabinet

300 mm

ED13TA ED22TA

2 300 1 250 24 NH00 (ZH414) 1 200 ED12TA 2CPX037802R9999
18
2 500 48 NH00 (ZH414) 3 200 ED21TA 2CPX037806R9999
2 300 1 250 24 NH00 (ZH414) 2 200 ED13TA 2CPX037803R9999
2 500 48 NH00 (ZH414) 4 200 ED22TA 2CPX037807R9999
