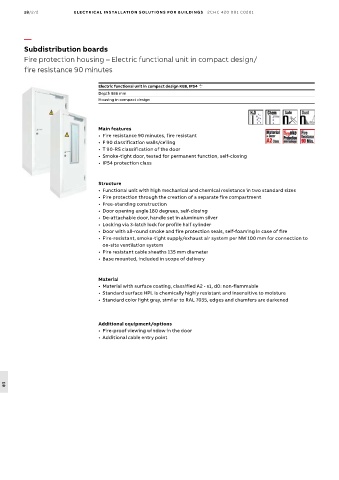

18/272 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Fire protection housing – Electric functional unit in compact design/
fire resistance 90 minutes

Electric functional unit in compact design KEB, IP54 .
Depth 586 mm
Housing in compact design

Main features
• Fire resistance 90 minutes, fire resistant
• F 90 classification walls/ceiling
• T 90-RS classification of the door
• Smoke-tight door, tested for permanent function, self-closing
• IP54 protection class

Structure
• Functional unit with high mechanical and chemical resistance in two standard sizes
• Fire protection through the creation of a separate fire compartment
• Free-standing construction
• Door opening angle 180 degrees, self-closing
• De-attachable door, handle set in aluminum silver
• Locking via 3-latch lock for profile half cylinder
• Door with all-round smoke and fire protection seals, self-foaming in case of fire
• Fire-resistant, smoke-tight supply/exhaust air system per NW 100 mm for connection to
on-site ventilation system
• Fire resistant cable sheaths 135 mm diameter
• Base mounted, included in scope of delivery

Material
• Material with surface coating, classified A2 - s1, d0: non-flammable
• Standard surface HPL is chemically highly resistant and insensitive to moisture
• Standard color light gray, similar to RAL 7035, edges and chamfers are darkened

Additional equipment/options
• Fire-proof viewing window in the door
• Additional cable entry point
