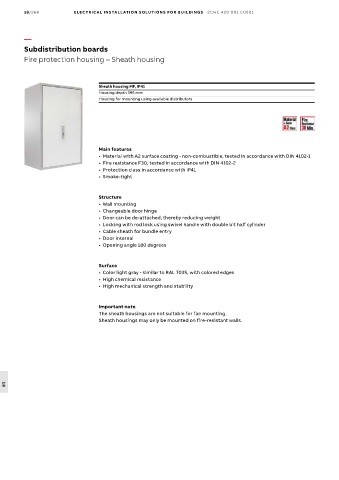

18/268 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Fire protection housing – Sheath housing

Sheath housing MF, IP41
Housing depth 396 mm
Housing for mounting using available distributors

Main features
• Material with A2 surface coating - non-combustible, tested in accordance with DIN 4102-1
• Fire resistance F30, tested in accordance with DIN 4102-2
• Protection class in accordance with IP41
• Smoke-tight

Structure
• Wall mounting
• Changeable door hinge
• Door can be de-attached, thereby reducing weight
• Locking with rod lock using swivel handle with double bit half cylinder
• Cable sheath for bundle entry
• Door internal
• Opening angle 180 degrees

Surface
• Color light gray - similar to RAL 7035, with colored edges
• High chemical resistance
• High mechanical strength and stability

Important note
The sheath housings are not suitable for fan mounting.
Sheath housings may only be mounted on fire-resistant walls.
