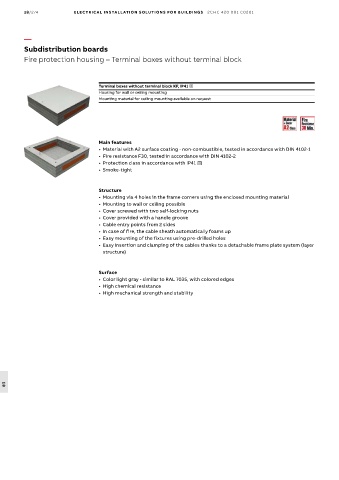

Page 2602 - Din prodcuts 2020

18/274 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Fire protection housing – Terminal boxes without terminal block

Terminal boxes without terminal block KF, IP41 ,
Housing for wall or ceiling mounting
Mounting material for ceiling mounting available on request

Main features
• Material with A2 surface coating - non-combustible, tested in accordance with DIN 4102-1
• Fire resistance F30, tested in accordance with DIN 4102-2
• Protection class in accordance with IP41 ,
• Smoke-tight

Structure
• Mounting via 4 holes in the frame corners using the enclosed mounting material
• Mounting to wall or ceiling possible
• Cover screwed with two self-locking nuts
• Cover provided with a handle groove
• Cable entry points from 2 sides
• In case of fire, the cable sheath automatically foams up
• Easy mounting of the fixtures using pre-drilled holes
• Easy insertion and clamping of the cables thanks to a detachable frame plate system (layer
structure)

Surface
• Color light gray - similar to RAL 7035, with colored edges
• High chemical resistance
• High mechanical strength and stability
