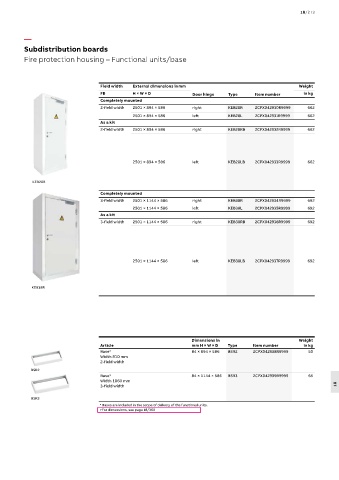

18/273

—
Subdistribution boards
Fire protection housing – Functional units/base

Field width External dimensions in mm Weight
FB H × W × D Door hinge Type Item number in kg
Completely mounted
2-field width 2501 × 894 × 586 right KEB28R 2CPX042930R9999 662
2501 × 894 × 586 left KEB28L 2CPX042931R9999 662
As a kit
2-field width 2501 × 894 × 586 right KEB28RB 2CPX042932R9999 662

2501 × 894 × 586 left KEB28LB 2CPX042933R9999 662

KEB28R

Completely mounted
3-field width 2501 × 1144 × 586 right KEB38R 2CPX042934R9999 692
2501 × 1144 × 586 left KEB38L 2CPX042935R9999 692
As a kit
3-field width 2501 × 1144 × 586 right KEB38RB 2CPX042936R9999 692

2501 × 1144 × 586 left KEB38LB 2CPX042937R9999 692

KEB38R

Dimensions in Weight
Article mm H × W × D Type Item number in kg
Base* 84 × 894 × 586 BSR2 2CPX042938R9999 50
Width 810 mm
2-field width
BSR2
Base* 84 × 1144 × 586 BSR3 2CPX042939R9999 65
Width 1060 mm
3-field width 18

BSR3
* Bases are included in the scope of delivery of the functional units.
>For dimensions, see page 18/360
