18/277

—

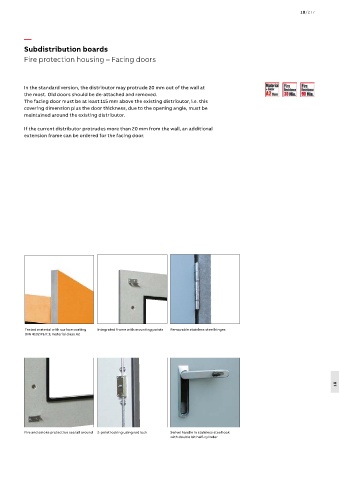

Subdistribution boards
Fire protection housing – Facing doors

In the standard version, the distributor may protrude 20 mm out of the wall at
the most. Old doors should be de-attached and removed.
The facing door must be at least 115 mm above the existing distributor, i.e. this
covering dimension plus the door thickness, due to the opening angle, must be
maintained around the existing distributor.

If the current distributor protrudes more than 20 mm from the wall, an additional
extension frame can be ordered for the facing door.

Tested material with surface coating Integrated frame with mounting points Removable stainless steel hinges
DIN 4102 Part 1; material class A2

18

Fire and smoke protection seal all around 2-point locking using rod lock Swivel handle in stainless steel look
with double bit half-cylinder
