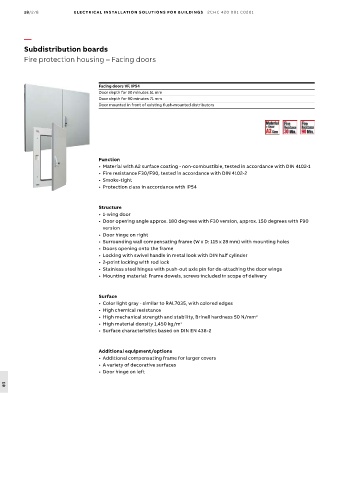

18/278 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Fire protection housing – Facing doors

Facing doors VF, IP54
Door depth for 30 minutes 51 mm
Door depth for 90 minutes 71 mm
Door mounted in front of existing flush-mounted distributors

Function
• Material with A2 surface coating - non-combustible, tested in accordance with DIN 4102-1
• Fire resistance F30/F90, tested in accordance with DIN 4102-2
• Smoke-tight
• Protection class in accordance with IP54

Structure
• 1-wing door
• Door opening angle approx. 180 degrees with F30 version, approx. 150 degrees with F90
version
• Door hinge on right
• Surrounding wall compensating frame (W x D: 115 x 28 mm) with mounting holes
• Doors opening onto the frame
• Locking with swivel handle in metal look with DIN half cylinder
• 2-point locking with rod lock
• Stainless steel hinges with push-out axle pin for de-attaching the door wings
• Mounting material: Frame dowels, screws included in scope of delivery

Surface
• Color light gray - similar to RAL7035, with colored edges
• High chemical resistance
• High mechanical strength and stability, Brinell hardness 50 N/mm 2
• High material density 1,450 kg/m 3
• Surface characteristics based on DIN EN 438-2

Additional equipment/options
• Additional compensating frame for larger covers
• A variety of decorative surfaces
• Door hinge on left

18
