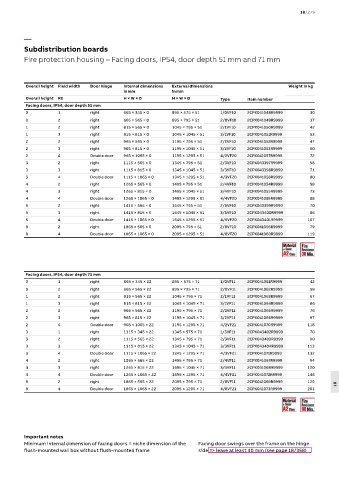

P. 2607
18/279
—
Subdistribution boards
Fire protection housing – Facing doors, IP54, door depth 51 mm and 71 mm
Overall height Field width Door hinge Internal dimensions External dimensions Weight in kg
in mm in mm
Overall height FB H × W × D H × W × D Type Item number
Facing doors, IP54, door depth 51 mm
0 1 right 665 × 345 × 0 895 × 575 × 51 1/0VF10 2CPX041048R9999 30
0 2 right 665 × 565 × 0 895 × 795 × 51 2/0VF10 2CPX041049R9999 37
1 2 right 815 × 565 × 0 1045 × 795 × 51 2/1VF10 2CPX041050R9999 42
1 3 right 815 × 815 × 0 1045 × 1045 × 51 3/1VF10 2CPX041051R9999 53
2 2 right 965 × 565 × 0 1195 × 795 × 51 2/2VF10 2CPX041052R9999 47
2 3 right 965 × 815 × 0 1195 × 1045 × 51 3/2VF10 2CPX041053R9999 60
2 4 Double door 965 × 1065 × 0 1195 × 1295 × 51 4/2VF20 2CPX041057R9999 72
3 2 right 1115 × 565 × 0 1345 × 795 × 51 2/3VF10 2CPX043397R9999 58
3 3 right 1115 × 815 × 0 1345 × 1045 × 51 3/3VF10 2CPX043398R9999 71
3 4 Double door 1115 × 1065 × 0 1345 × 1295 × 51 4/3VF20 2CPX041058R9999 80
4 2 right 1265 × 565 × 0 1495 × 795 × 51 2/4VF10 2CPX041054R9999 58
4 3 right 1265 × 815 × 0 1495 × 1045 × 51 3/4VF10 2CPX041055R9999 73
4 4 Double door 1265 × 1065 × 0 1495 × 1295 × 51 4/4VF20 2CPX041059R9999 88
5 2 right 1415 × 565 × 0 1645 × 795 × 51 2/5VF10 2CPX043399R9999 70
5 3 right 1415 × 815 × 0 1645 × 1045 × 51 3/5VF10 2CPX043400R9999 86
5 4 Double door 1415 × 1065 × 0 1645 × 1295 × 51 4/5VF20 2CPX043401R9999 107
8 2 right 1865 × 565 × 0 2095 × 795 × 51 2/8VF10 2CPX041056R9999 79
8 4 Double door 1865 × 1065 × 0 2095 × 1295 × 51 4/8VF20 2CPX041060R9999 119
Facing doors, IP54, door depth 71 mm
0 1 right 665 × 345 × 22 895 × 575 × 71 1/0VF11 2CPX041061R9999 42
0 2 right 665 × 565 × 22 895 × 795 × 71 2/0VF11 2CPX041062R9999 58
1 2 right 815 × 565 × 22 1045 × 795 × 71 2/1VF11 2CPX041063R9999 67
1 3 right 815 × 815 × 22 1045 × 1045 × 71 3/1VF11 2CPX041064R9999 86
2 2 right 965 × 565 × 22 1195 × 795 × 71 2/2VF11 2CPX041065R9999 76
2 3 right 965 × 815 × 22 1195 × 1045 × 71 3/2VF11 2CPX041066R9999 97
2 4 Double door 965 × 1065 × 22 1195 × 1295 × 71 4/2VF21 2CPX041070R9999 118
3 1 right 1115 × 345 × 22 1345 × 575 × 71 1/3VF11 2CPX043402R9999 70
3 2 right 1115 × 565 × 22 1345 × 795 × 71 2/3VF11 2CPX043403R9999 90
3 3 right 1115 × 815 × 22 1345 × 1045 × 71 3/3VF11 2CPX043404R9999 113
3 4 Double door 1115 × 1065 × 22 1345 × 1295 × 71 4/3VF21 2CPX041071R9999 132
4 2 right 1265 × 565 × 22 1495 × 795 × 71 2/4VF11 2CPX041067R9999 94
4 3 right 1265 × 815 × 22 1495 × 1045 × 71 3/4VF11 2CPX041068R9999 120
4 4 Double door 1265 × 1065 × 22 1495 × 1295 × 71 4/4VF21 2CPX041072R9999 146
8 2 right 1865 × 565 × 22 2095 × 795 × 71 2/8VF11 2CPX041069R9999 129
18
8 4 Double door 1865 × 1065 × 22 2095 × 1295 × 71 4/8VF21 2CPX041073R9999 201
Important notes
Minimum internal dimension of facing doors = niche dimension of the Facing door swings over the frame on the hinge
flush-mounted wall box without flush-mounted frame side => leave at least 40 mm (see page 18/358)
