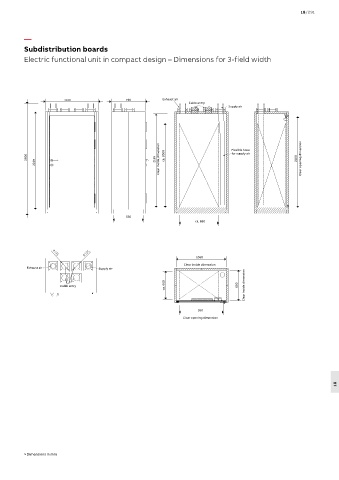

Subdistribution boards
Electric functional unit in compact design – Dimensions for 3-field width
1144 736 Exhaust air
Cable entry
Supply air
Clear inside dimension 2155 2100 Clear opening dimension
for supply air
2500 ca. 2000 Flexible hose
2239
550
ca. 850
1060
Clear inside dimension
Exhaust air Supply air
Cable entry ca. 600 650 Clear inside dimension
950
Clear opening dimension
18
> Dimensions in mm
