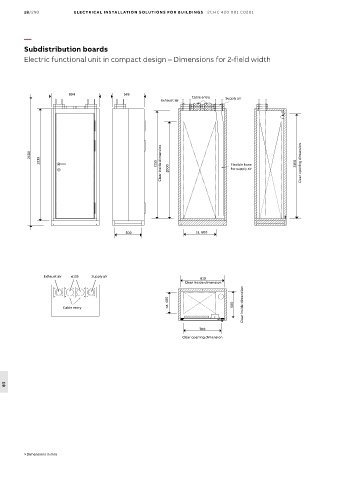

18/290 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Subdistribution boards
Electric functional unit in compact design – Dimensions for 2-field width
894 586
Cable entry Supply air
Exhaust air
Clear inside dimension 2155 2000 Flexible hose 2100 Clear opening dimension
2500
2239
for supply air
500 ca. 600
Exhaust air ø135 Supply air
810
Clear inside dimension
Clear inside dimension
ca. 400
500
Cable entry
700
Clear opening dimension
18
> Dimensions in mm
