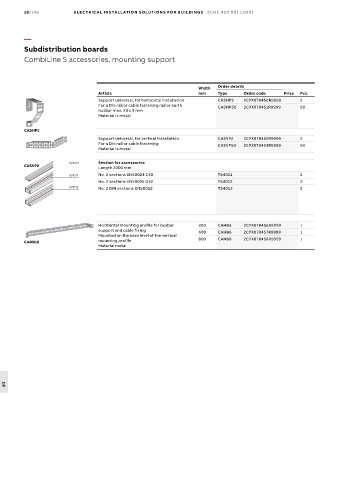

18/336 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
CombiLine S accessories, mounting support

Width Order details
Article mm Type Order code Price Pcs.
Support universal, for horizontal installation CASHP2 2CPX078450R9999 2
For a Din rail or cable fastening rail or earth CASHP50 2CPX078451R9999 50
busbar max. 20 x 5 mm
Material is metal

CASHP2
Support universal, for vertical installation CASVP2 2CPX078452R9999 2
For a Din rail or cable fastening CASVP50 2CPX078453R9999 50
Material is metal

TS4013 Section for accessories
CASVP2 Length 2000 mm
TS4011 No. 2 sections EN50024 C30 TS4011 2
No. 2 sections EN50035 G32 TS4012 2
TS4012 No. 2 DIN sections EN50022 TS4013 2
TS4000
TS4001
TS4002
TS4003

Horizontal mounting profile for busbar 300 CAHB3 2CPX078456R9999 1
support and cable fixing 600 CAHB6 2CPX078457R9999 1
Mounted on the back level of the vertical
CAHB16 mounting profile 800 CAHB8 2CPX078458R9999 1
Material metal
AD1080 AD1081 AD1030
AD1031

AD1075 AD1004
AD1006

AD1028 AD1027
AD1029
AD1038

AD1034
AD1053
