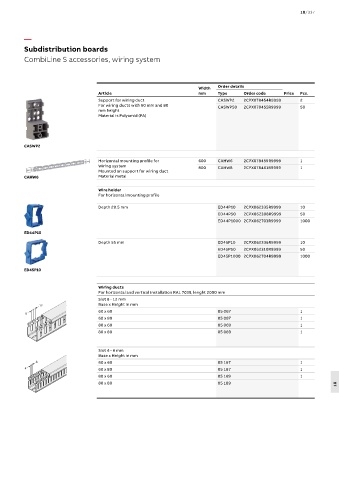

Subdistribution boards
CombiLine S accessories, wiring system
Width Order details
Article mm Type Order code Price Pcs.
Support for wiring duct CASWP2 2CPX078454R9999 2
For wiring ducts with 60 mm and 80 CASWP50 2CPX078455R9999 50
mm height
Material is Polyamid (PA)
CASWP2
Horizontal mounting profile for 600 CAHW6 2CPX078459R9999 1
Wiring system 800 CAHW8 2CPX078461R9999 1
Mounted on support for wiring duct
CAHW6 Material metal
Wire holder
For horizontal mounting profile
Depth 28.5 mm ED44P10 2CPX062335R9999 10
ED44P50 2CPX062308R9999 50
ED44P1000 2CPX062703R9999 1000
ED44P10
Depth 55 mm ED45P10 2CPX062336R9999 10
ED45P50 2CPX062310R9999 50
ED45P1000 2CPX062704R9999 1000
ED45P10
Wiring ducts
For horizontal and vertical installation RAL 7035, lenght 2000 mm
Slot 8 - 12 mm
12 Base x Height in mm
6 60 x 60 05 067 1
8
4 60 x 80 05 087 1
80 x 60 05 069 1
80 x 80 05 089 1
Slot 4 - 6 mm
12 Base x Height in mm
6 60 x 60 05 167 1
8
4 60 x 80 05 187 1
80 x 60 05 169 1
80 x 80 05 189 18
