18/338 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

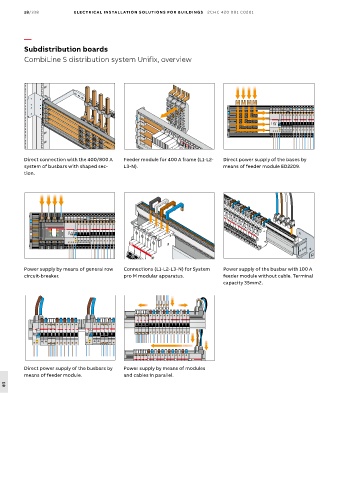

Subdistribution boards
CombiLine S distribution system Unifix, overview

N
L1
T
L2
L3 N

Direct connection with the 400/800 A Feeder module for 400 A frame (L1-L2- Direct power supply of the bases by
system of busbars with shaped sec- L3-N). means of feeder module ED2209.
tion.

N
L1
T
L2
L3 N

Power supply by means of general row Connections (L1-L2-L3-N) for System Power supply of the busbar with 100 A
circuit-breaker. pro M modular apparatus. feeder module without cable. Terminal
capacity 35mm2.

T T
N N

T
Direct power supply of the busbars by Power supply by means of modules
means of feeder module. and cables in parallel.
