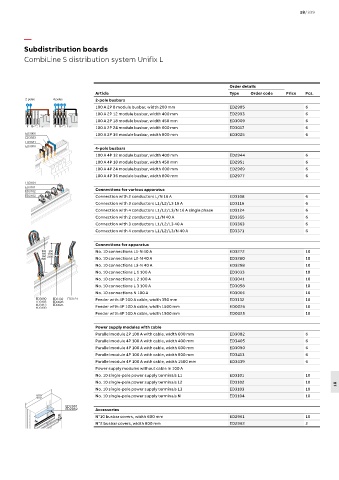

Page 2667 - Din prodcuts 2020

18/339

—
600
800
Subdistribution boards
ED2961
ED2962
CombiLine S distribution system Unifix L
ED….
GD1520
GD1530
PM2624
PM2836
Order details
Article Type Order code Price Pcs.
2 poles 4 poles 2-pole busbars
N L1 N L1 L2 L3
100 A 2P 8 module busbar, width 200 mm ED2985 6
100 A 2P 12 module busbar, width 400 mm ED2993 6
100 A 2P 18 module busbar, width 450 mm ED3009 6
100 A 2P 24 module busbar, width 600 mm ED3017 6
ED3066 100 A 2P 36 module busbar, width 800 mm ED3025 6
ED3033
ED3041
ED3058
4-pole busbars
100 A 4P 12 module busbar, width 400 mm ED2944 6
100 A 4P 18 module busbar, width 450 mm ED2951 6
100 A 4P 24 module busbar, width 600 mm ED2969 6
100 A 4P 36 module busbar, width 800 mm ED2977 6
ED3104
ED3101
ED3102 Connections for various apparatus
ED3103 Connection with 2 conductors L/N 16 A ED3108 6
Connection with 3 conductors L1/L2/L3 16 A ED3116 6
Connection with 4 conductors L1/L2/L3/N 16 A single phase ED3124 6
Connection with 2 conductors L1/N 40 A ED3355 6
Connection with 3 conductors L1/L2/L3 40 A ED3363 6
Connection with 4 conductors L1/L2/L3/N 40 A ED3371 6

Connections for apparatus
400 350 No. 10 connections L1-N 40 A ED3272 10
600 1500
800 2500
1500 No. 10 connections L2-N 40 A ED3280 10
No. 10 connections L3-N 40 A ED3298 10
No. 10 connections L 1 100 A ED3033 10
No. 10 connections L 2 100 A ED3041 10
No. 10 connections L 3 100 A ED3058 10
No. 10 connections N 100 A ED3066 10
ED3090 ED3132 ED3124 Feeder with 4P 100 A cable, width 350 mm ED3132 10
ED3405 ED0026
ED3413 ED0025
ED3439 Feeder with 4P 100 A cable, width 1500 mm ED0026 10
Feeder with 4P 100 A cable, width 1500 mm ED0025 10
Power supply modules with cable
Parallel module 2P 100 A with cable, width 600 mm ED3082 6
Parallel module 4P 100 A with cable, width 400 mm ED3405 6
Parallel module 4P 100 A with cable, width 600 mm ED3090 6
Parallel module 4P 100 A with cable, width 800 mm ED3413 6
Parallel module 4P 100 A with cable, width 1500 mm ED3439 6
Power supply modules without cable In 100 A
No. 10 single-pole power supply terminals L1 ED3101 10
No. 10 single-pole power supply terminals L2 ED3102 10 18
No. 10 single-pole power supply terminals L3 ED3103 10
600 No. 10 single-pole power supply terminals N ED3104 10
800
ED2961
ED2962 Accessories
N°10 busbar covers, width 600 mm ED2961 10
N°2 busbar covers, width 800 mm ED2962 2

N L1 N L1 L2 L3
