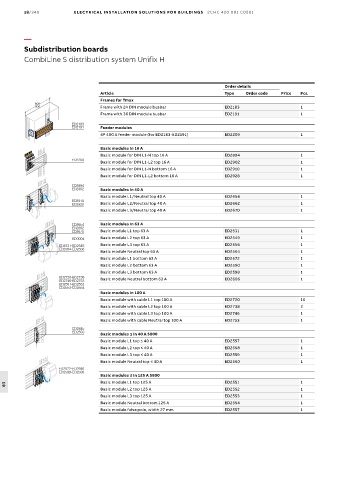

18/340 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
CombiLine S distribution system Unifix H

Order details
Article Type Order code Price Pcs.
Frames for Tmax
600
800 Frame with 24 DIN module busbar ED2183 1
Frame with 36 DIN module busbar ED2191 1
AD1097
ED2183
ED2191 Feeder modules
4P 400 A feeder module (for ED2183-ED2191) ED2209 1

Basic modules In 16 A
Basic module for DIN L1-N top 16 A ED2894 1
ED2209
Basic module for DIN L1-L2 top 16 A ED2902 1
Basic module for DIN L1-N bottom 16 A ED2910 1
Basic module for DIN L1-L2 bottom 16 A ED2928 1
ED2894
ED2902 Basic modules In 40 A
Basic module L1/Neutral top 40 A ED2654 1
ED2910
ED2928 Basic module L2/Neutral top 40 A ED2662 1
Basic module L3/Neutral top 40 A ED2670 1

ED2654 Basic modules In 63 A
ED2662
ED2670 Basic module L1 top 63 A ED2531 1
ED0004 Basic module L2 top 63 A ED2549 1
ED2531-ED2549 Basic module L3 top 63 A ED2556 1
ED2564-ED2556
Basic module Neutral top 63 A ED2564 1
Basic module L1 bottom 63 A ED2572 1
Basic module L2 bottom 63 A ED2590 1
Basic module L3 bottom 63 A ED2598 1
ED2720-ED2738
ED2746-ED2753 Basic module Neutral bottom 63 A ED2606 1
ED2551-ED2552
ED2553-ED2554
Basic modules In 100 A
Basic module with cable L1 top 100 A ED2720 10
Basic module with cable L2 top 100 A ED2738 2
Basic module with cable L3 top 100 A ED2746 1
Basic module with cable Neutral top 100 A ED2753 1
ED2845
ED2550
Basic modules ≤ In 40 A S800
Basic module L1 top ≤ 40 A ED2557 1
Basic module L2 top ≤ 40 A ED2558 1
Basic module L3 top ≤ 40 A ED2559 1
Basic module Neutral top ≤ 40 A ED2560 1
ED2572-ED2590
ED2598-ED2506
Basic modules ≤ In 125 A S800
Basic module L1 top 125 A ED2551 1
Basic module L2 top 125 A ED2552 1
18
Basic module L3 top 125 A ED2553 1
Basic module Neutral bottom 125 A ED2554 1
Basic module false pole, width 27 mm ED2557 1
