18/355

—

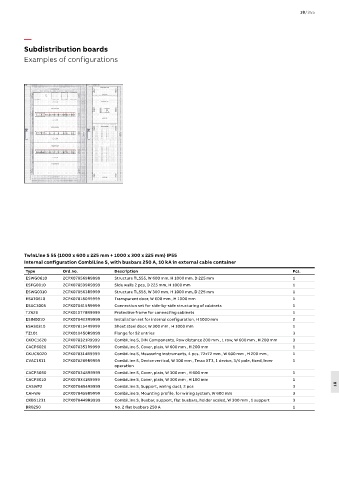

Subdistribution boards
Examples of configurations

1
+0 +01 ESBN0610 +02 ESBN0310
CACP40100
CKUC6020
+02.10
+01.10 CVAA1511
CKDD1620 ABB TMax XT1
+02.20
+01.20
CKDD1620 CACP4060
+01.40
CKBS1233
+02.30
CKDD1620
+01.30
CACP6020
+01.50 +02.40

TwinLine S 55 (1000 x 600 x 225 mm + 1000 x 300 x 225 mm) IP55
Internal configuration CombiLine S, with busbars 250 A, 10 kA in external cable container
Type Ord.no. Description Pcs.
ESWG0610 2CPX078569R9999 Structure TLS55, W 600 mm, H 1000 mm, D 225 mm 1
ESFG0010 2CPX078599R9999 Side walls 2 pcs, D 225 mm, H 1000 mm 1
ESWG0310 2CPX078563R9999 Structure TLS55, W 300 mm, H 1000 mm, D 225 mm 1
ESAT0610 2CPX078180R9999 Transparent door, W 600 mm , H 1000 mm 1
ESAC3005 2CPX078415R9999 Connection set for side-by-side structuring of cabinets 1
TZ626 2CPX010778R9999 Protective frame for connecting cabinets 1
ESIN0010 2CPX078423R9999 Installation set for internal configuration, H 1000 mm 2
ESAS0310 2CPX078154R9999 Sheet steel door, W 300 mm , H 1000 mm 1
TZ101 2CPX010450R9999 Flange for 52 entries 3
CKDC1620 2CPX078321R9999 CombiLine S, DIN Components, Row distance 200 mm , 1 row, W 600 mm , H 200 mm 3
CACP6020 2CPX078353R9999 CombiLine S, Cover, plain, W 600 mm , H 200 mm 1
CKUC6020 2CPX078314R9999 CombiLine S, Measuring instruments, 4 pcs. 72x72 mm , W 600 mm , H 200 mm , 1
CVAC1511 2CPX078269R9999 CombiLine S, Device vertical, W 300 mm , Tmax XT3, 1 device, 3/4 pole, fixed, lever 1
operation
CACP3060 2CPX078348R9999 CombiLine S, Cover, plain, W 300 mm , H 600 mm 1
CACP3010 2CPX078341R9999 CombiLine S, Cover, plain, W 300 mm , H 100 mm 1
CASWP2 2CPX078454R9999 CombiLine S, Support, wiring duct, 2 pcs 3 18
CAHW6 2CPX078459R9999 CombiLine S, Mounting profile, for wiring system, W 600 mm 3
CKBS1231 2CPX078449R9999 CombiLine S, Busbar, support, flat busbars, holder scaled, W 300 mm , 1 support 3
BR0250 No. 2 flat busbars 250 A 1
